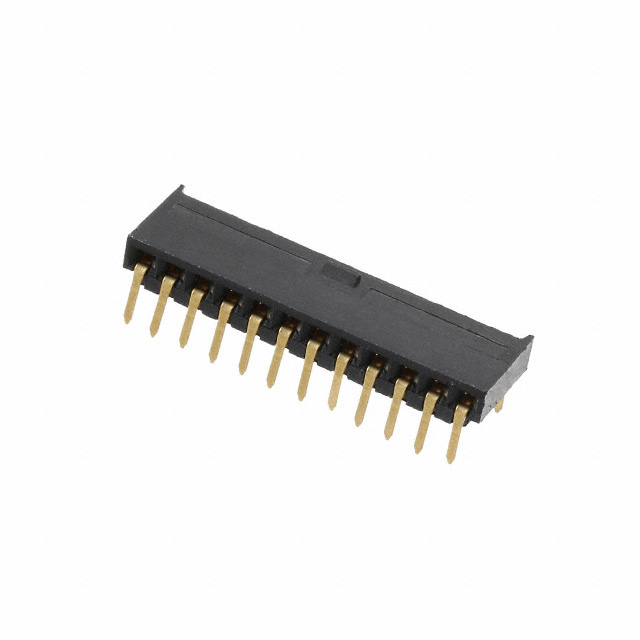

280580-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Receptacles, Female Sockets

High Temperature Compatible :

No

Mounting Type :

Through Hole, Right Angle

PCB Contact Pattern :

RECTANGULAR

Pbfree Code :

yes

Height :

4.0386mm

Reference Standard :

UL

Series :

AMPMODU Mod II

Lead Length :

3.5mm

Housing Material :

Glass

Contact Finish Thickness - Post :

Flash

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Shape :

Square

Mount :

Through Hole

Rated Current (Signal) :

3A

DIN Conformance :

No

Pitch - Mating :

0.100 2.54mm

Length - Tail :

3.5mm

MIL Conformance :

No

Number of Rows :

1

Housing Color :

Black

Filter Feature :

No

Flammability Rating :

UL94 V-0

Number of Positions Loaded :

All

Max Operating Temperature :

105°C

Orientation :

RIGHT ANGLE

Withdrawl Force-Min :

.2085 N

Option :

GENERAL PURPOSE

Contact Finish - Mating :

Gold

UL Flammability Code :

94V-0

Fastening Type :

Friction Lock

Stackable :

yes

Contact Type :

Female Socket

Factory Lead Time :

16 Weeks

PCB Mounting Orientation :

RIGHT ANGLE

Number Of PCB Rows :

2

IEC Conformance :

No

PCB Contact Row Spacing :

7.62 mm

RoHS Status :

RoHS Compliant

ELV :

Compliant

Terminal Pitch :

2.54mm

Material Flammability Rating :

UL94 V-0

Body Depth :

0.343 inch

Connector Type :

Receptacle

Contact Current Rating :

3A

Insulation Material :

Polyester, Glass Filled

Contact Length - Post :

0.138 3.50mm

Style :

Board to Board

ECCN Code :

EAR99

Number of Positions :

12

Insulation Resistance :

5GOhm

Reliability :

COMMERCIAL

Contact Material :

Phosphor Bronze

Number of Conductors :

ONE

HTS Code :

8536.69.40.40

Mixed Contacts :

No

Polarization Key :

POLARIZED HOUSING

Packaging :

Tray

Min Operating Temperature :

-65°C

Plating Thickness :

400 nm

Published :

2009

Contact Finish Thickness - Mating :

16.0μin 0.41μm

Termination :

Solder

Insulation Height :

0.157 4.00mm
