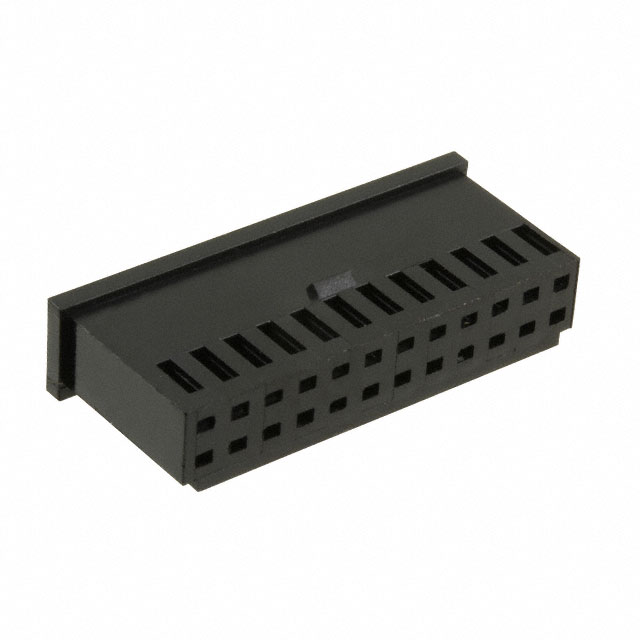

280515
Or copy the link below:
- Mfr.Part #
- 280515
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 24POS 2.54MM
- Stock
- 8,195
- In Stock ：
- 8,195
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Housings
- Mixed Contacts :
- No
- REACH SVHC :
- Unknown
- Note :
- Contacts Not Included
- Contact Material :
- Bronze
- MIL Conformance :
- No
- Width :
- 7.1mm
- Depth :
- 13.7mm
- Number of Positions :
- 24
- Current Rating :
- 3A
- Factory Lead Time :
- 38 Weeks
- IEC Conformance :
- No
- Min Operating Temperature :
- -65°C
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Orientation :
- Straight
- Packaging :
- Bulk
- Fastening Type :
- Locking Ramp
- Pitch :
- 0.100 2.54mm
- Max Voltage Rating (AC) :
- 600V
- Total Number of Contacts :
- 24
- Mating Retention :
- With
- Mounting Type :
- Free Hanging (In-Line)
- Row Spacing :
- 0.100 (2.54mm)
- Lead Pitch :
- 2.54mm
- Contact Finish - Mating :
- NOT SPECIFIED
- Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- DIN Conformance :
- No
- ELV :
- Compliant
- Series :
- AMPMODU Mod II
- Housing Material :
- Thermoplastic
- Height :
- 3.048mm
- Mount :
- Free Hanging
- Contact Plating :
- Bronze, Gold
- Lead Free :
- Lead Free
- Pbfree Code :
- yes
- Contact Gender :
- FEMALE
- Filter Feature :
- No
- Option :
- GENERAL PURPOSE
- Max Operating Temperature :
- 105°C
- Connector Type :
- Receptacle
- UL Flammability Code :
- 94V-1
- Number of Rows :
- 2
- Published :
- 1998
- Flammability Rating :
- UL94 V-1
- Contact Termination :
- Crimp
- RoHS Status :
- RoHS Compliant
- Length :
- 7.1mm
- Datasheets
- 280515
2 Rows Receptacle Bulk Black 24 Positions Free Hanging (In-Line) Crimp AMPMODU Mod II Thermoplastic
280515 Overview
A Receptacle package is included with it.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the AMPMODU Mod II Series of products.Free Hanging mounts the part.
280515 Features
AMPMODU Mod II series
280515 Applications
There are a lot of TE Connectivity AMP Connectors
280515 Rectangular Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
