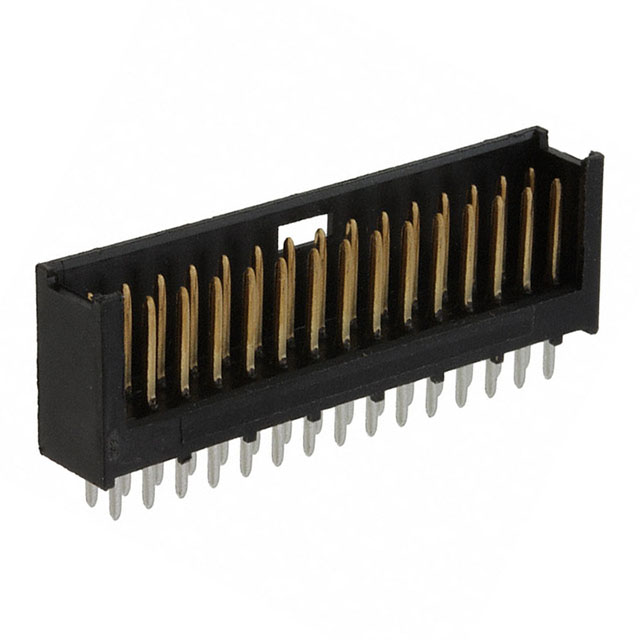

280387-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Length :

40.7mm

Contact Plating :

Gold, Tin

Contact Length - Post :

0.138 3.50mm

Approval Agency :

CSA

Insulation Color :

Black

Contact Finish - Mating :

Gold

Row Spacing - Mating :

0.100 (2.54mm)

Published :

2001

Mounting Type :

Through Hole

Overall Contact Length :

0.563 14.30mm

Voltage - Rated DC :

250V

Material Flammability Rating :

UL94 V-0

Contact Length - Mating :

0.260 6.60mm

Shrouding :

Shrouded - 3 Wall

Style :

Board to Board or Cable

PCB Mounting Orientation :

Vertical

Insulation Material :

Thermoplastic

Insulation Height :

0.496 12.60mm

Series :

AMPMODU Mod II

Shrouded End Dimension :

1.65 mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

Brass

Option :

GENERAL PURPOSE

Connector Type :

Header

Pitch - Mating :

0.100 2.54mm

Contact Finish - Post :

Tin

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Mixed Contacts :

No

REACH SVHC :

Unknown

Contact Gender :

Male

UL Flammability Code :

94V-0

High Temperature Housing :

No

Lead Pitch :

2.54mm

Factory Lead Time :

33 Weeks

Contact Shape :

Square

Lead Length :

3.5052mm

Mating Post Length :

6.604mm

Current Rating :

3A

Number of Conductors :

ONE

Mount :

Through Hole

Termination :

Solder

Depth :

7mm

Filter Feature :

No

Number of Positions Loaded :

All

Pbfree Code :

yes

Number of Rows :

2

Flammability Rating :

UL94 V-0

Fastening Type :

Detent Lock

Mating Contact Pitch :

.100 inch

PCB Contact Pattern :

RECTANGULAR

Contact Type :

Male Pin

Plating Thickness :

2.5μm

Number of Positions :

30

Number Of PCB Rows :

2

Voltage - Rated AC :

250V

Contact Finish Thickness - Post :

98.4μin 2.50μm

Operating Temperature :

-40°C~80°C

Packaging :

Bulk

Contact Finish Thickness - Mating :

15.0μin 0.38μm

RoHS Status :

RoHS Compliant
