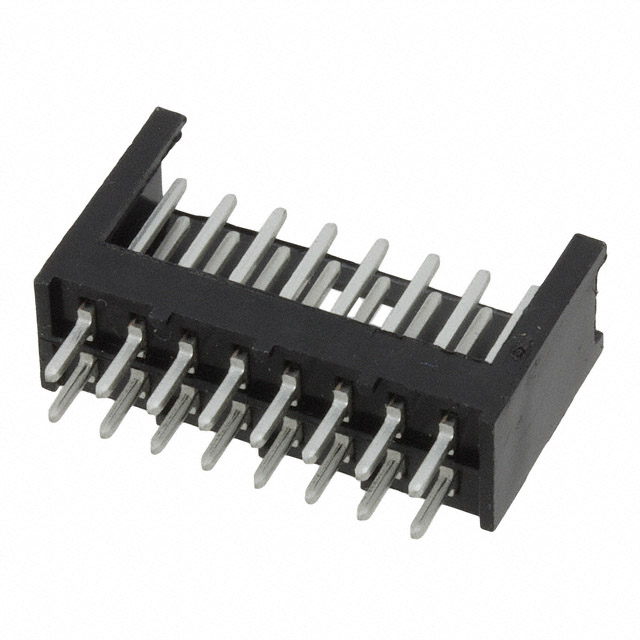

280385-1
Or copy the link below:
- Mfr.Part #
- 280385-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 16POS 2.54MM
- Stock
- 1,424
- In Stock ：
- 1,424
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- PCB Mounting Orientation :
- Vertical
- Mating Contact Pitch :
- .100 inch
- Number of Conductors :
- ONE
- Contact Length - Post :
- 0.138 3.50mm
- PCB Contact Pattern :
- RECTANGULAR
- Operating Temperature :
- -40°C~80°C
- Length :
- 22.9mm
- Termination :
- Solder
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Number of Positions Loaded :
- All
- Contact Shape :
- Square
- Voltage - Rated :
- 40V
- Number of Rows :
- 2
- Shrouded End Dimension :
- 1.65 mm
- Plating Thickness :
- 3.5μm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Filter Feature :
- No
- Pitch - Mating :
- 0.100 2.54mm
- Mixed Contacts :
- No
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Material Flammability Rating :
- UL94 V-0
- Option :
- GENERAL PURPOSE
- Published :
- 2001
- UL Flammability Code :
- 94V-0
- Insulation Material :
- Thermoplastic
- Flammability Rating :
- UL94 V-0
- Style :
- Board to Board or Cable
- Series :
- AMPMODU Mod II
- Depth :
- 7mm
- Contact Gender :
- Male
- Lead Length :
- 3.5052mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ELV :
- Compliant
- Insulation Height :
- 0.496 12.60mm
- Lead Free :
- Lead Free
- Keyed :
- No
- Connector Type :
- Header
- Mounting Type :
- Through Hole
- Contact Length - Mating :
- 0.260 6.60mm
- Fastening Type :
- Detent Lock
- Approval Agency :
- CSA
- Pbfree Code :
- yes
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Shrouding :
- Shrouded - 3 Wall
- Mating Post Length :
- 6.604mm
- Overall Contact Length :
- 0.563 14.30mm
- Contact Finish - Mating :
- Tin
- Number Of PCB Rows :
- 2
- RoHS Status :
- RoHS Compliant
- Contact Material :
- Brass
- Mount :
- Through Hole
- Housing Color :
- Black
- Contact Type :
- Male Pin
- REACH SVHC :
- Unknown
- Current Rating (Amps) :
- 3A
- Lead Pitch :
- 2.54mm
- Factory Lead Time :
- 33 Weeks
- Packaging :
- Bulk
- Number of Positions :
- 16
- Datasheets
- 280385-1
AMPMODU Mod II Series 2-Row Header Solder Brass Bulk Through Hole Tin Thermoplastic 16-Position Board to Board or Cable 0.496 12.60mm Height
280385-1 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number AMPMODU Mod II belongs to the AMPMODU Mod II Series.There is a Through Hole mount on the part.This device operates at a temperature of -40°C~80°C.
280385-1 Features
AMPMODU Mod II series
280385-1 Applications
There are a lot of TE Connectivity AMP Connectors
280385-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
