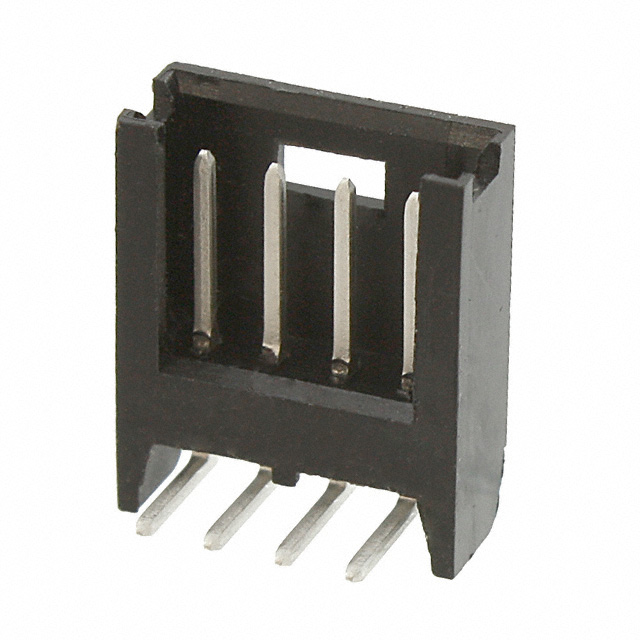

280378-1
Or copy the link below:
- Mfr.Part #
- 280378-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 4POS 2.54MM
- Stock
- 5,979
- In Stock ：
- 5,979
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Pitch - Mating :
- 0.100 2.54mm
- Number of Positions Loaded :
- All
- Fastening Type :
- Detent Lock
- Mounting Option 1 :
- LOCKING
- Published :
- 2002
- Insulation Height :
- 0.197 5.00mm
- PCB Contact Pattern :
- RECTANGULAR
- Operating Temperature :
- -40°C~80°C
- Termination :
- Solder
- JESD-609 Code :
- e3
- Row Spacing :
- 2.54 mm
- Mounting Type :
- Through Hole, Right Angle
- MIL Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 33 Weeks
- Connector Type :
- Header
- Number of Rows :
- 1
- Body Depth :
- 0.587 inch
- Reliability :
- COMMERCIAL
- Reference Standard :
- UL, CSA
- Contact Shape :
- Square
- Body Length or Diameter :
- 0.5 inch
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Packaging :
- Bulk
- Insulation Resistance :
- 5000000000Ohm
- Option :
- GENERAL PURPOSE
- Filter Feature :
- No
- Contact Material :
- Brass
- Material :
- Thermoplastic
- Contact Type :
- Male Pin
- Contact Length - Post :
- 0.138 3.50mm
- Contact Finish - Mating :
- Tin
- Number of Conductors :
- ONE
- Lead Pitch :
- 2.54mm
- DIN Conformance :
- No
- Insulation Material :
- Thermoplastic
- ECCN Code :
- EAR99
- Orientation :
- RIGHT ANGLE
- Shrouding :
- Shrouded - 3 Wall
- IEC Conformance :
- No
- Number of Positions :
- 4
- Contact Length - Mating :
- 0.260 6.60mm
- Number Of PCB Rows :
- 1
- Style :
- Board to Board or Cable
- Housing Color :
- Black
- Pbfree Code :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- AMPMODU Mod II
- Mixed Contacts :
- No
- Lead Free :
- Lead Free
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- RoHS Status :
- RoHS Compliant
- Current Rating :
- 3A
- Voltage - Rated :
- 40V
- Datasheets
- 280378-1
AMPMODU Mod II Series 1-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Thermoplastic 4-Position Board to Board or Cable 0.197 5.00mm Height
280378-1 Overview
It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Bulk case is used.It belongs to the AMPMODU Mod II Series of products.The device runs in -40°C~80°C Operating Temperature.
280378-1 Features
AMPMODU Mod II series
280378-1 Applications
There are a lot of TE Connectivity AMP Connectors
280378-1 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
