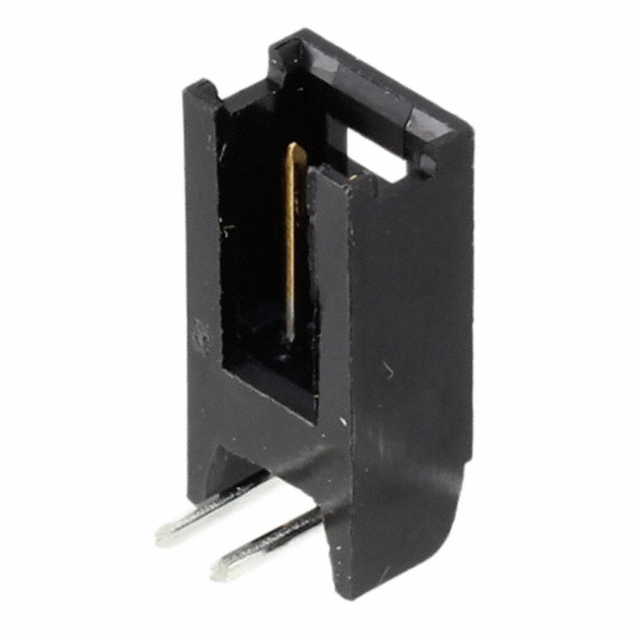

280377-2
Or copy the link below:
- Mfr.Part #
- 280377-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 2POS 2.54MM
- Stock
- 11,595
- In Stock ：
- 11,595
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number Of PCB Rows :
- 1
- Reliability :
- COMMERCIAL
- Series :
- AMPMODU Mod II
- Number of Conductors :
- ONE
- Mounting Type :
- Through Hole, Right Angle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 2
- Contact Length - Post :
- 0.138 3.50mm
- UL Flammability Code :
- 94V-0
- Pitch - Mating :
- 0.100 2.54mm
- Pbfree Code :
- yes
- Contact Type :
- Male Pin
- Contact Finish Thickness - Post :
- 98.4μin 2.50μm
- Contact Shape :
- Square
- Number of Positions Loaded :
- All
- Mounting Option 1 :
- LOCKING
- Contact Finish - Mating :
- Gold
- Connector Type :
- Header
- Current Rating (Amps) :
- 3A
- Contact Material :
- Brass
- Operating Temperature :
- -40°C~80°C
- Style :
- Board to Board or Cable
- Insulation Material :
- Thermoplastic
- IEC Conformance :
- No
- Termination :
- Solder
- Option :
- GENERAL PURPOSE
- PCB Contact Pattern :
- RECTANGULAR
- Mixed Contacts :
- No
- Factory Lead Time :
- 21 Weeks
- Number of Rows :
- 1
- Contact Finish - Post :
- Tin
- Body Depth :
- 0.587 inch
- Filter Feature :
- No
- RoHS Status :
- RoHS Compliant
- Insulation Color :
- Black
- Body Length or Diameter :
- 0.303 inch
- Insulation Resistance :
- 5000000000Ohm
- Shrouding :
- Shrouded - 3 Wall
- DIN Conformance :
- No
- Contact Length - Mating :
- 0.260 6.60mm
- Insulation Height :
- 0.197 5.00mm
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Voltage - Rated :
- 40V
- Fastening Type :
- Detent Lock
- MIL Conformance :
- No
- Reference Standard :
- UL, CSA
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Published :
- 1997
- Datasheets
- 280377-2
AMPMODU Mod II Series 1-Row Header Solder Brass Bulk Through Hole, Right Angle Gold Thermoplastic 2-Position Board to Board or Cable 0.197 5.00mm Height
280377-2 Overview
A Header package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Bulk case.It is part of the AMPMODU Mod II Series of products.There is no operating temperature for the device.
280377-2 Features
AMPMODU Mod II series
280377-2 Applications
There are a lot of TE Connectivity AMP Connectors
280377-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
