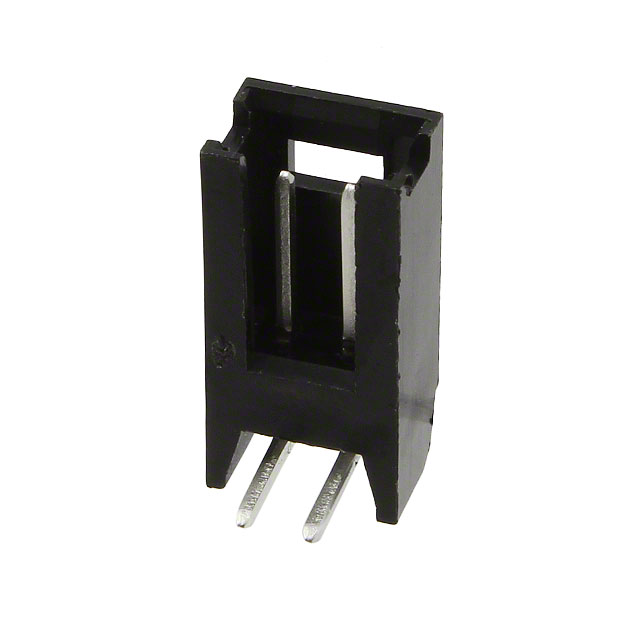

280377-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Pbfree Code :

yes

Product Depth (mm) :

14.9(mm)

Plating Thickness :

138u inch

Product Height (mm) :

5(mm)

Tradename :

AMPMODU

Product :

Headers

RoHS :

Details

Reference Standard :

UL, CSA

Contact Style :

SQ PIN-SKT

Product Category :

Headers and Wire Housings

Base/Housing Material :

Thermoplastic

Mounting :

Through Hole

Connector System :

Board to Board, Wire to Board

Mounting Style :

Through Hole

Operating Temp Range :

-65C to 105C

IEC Conformance :

No

Pitch (mm) :

2.54(mm)

Body Orientation :

RIGHT ANGLE

Current Rating (Max) :

3(A)

Body Depth :

0.587 inch

Flammability Rating :

UL 94 V-0

Body/Shell Style :

Receptacle

Housing Material :

Thermoplastic

Reach Compliance Code :

Compliant

Pitch :

2.5400 mm

Contact Material :

Brass

HTS Code :

8536.69.40.40

Contact Plating :

Tin

Factory Lead Time :

11 Weeks

Connector Type :

BOARD CONNECTOR

Termination Type :

Solder

Mounting Type :

Through Hole

Number of Positions :

2 Position

Contact Gender :

Pin (Male)

UL Flammability Code :

94V-0

Dielectric Withstanding Voltage :

1050VAC V

ECCN Code :

EAR99

Operating Temperature :

-55 to 105 °C

Mounting Option 1 :

LOCKING

Termination Post Length :

3.5 mm

Filter Feature :

No

Mating Contact Pitch :

0.1 inch

Subcategory :

Headers and Wire Housings

Product Length (mm) :

7.7(mm)

Reliability :

COMMERCIAL

Insulation Resistance :

5000000000 Ω

Additional Feature :

SHROUDED

Contact Pattern :

RECTANGULAR

Total Number of Contacts :

2

Termination Method :

Solder

Maximum Operating Temperature :

+ 105 C

Gender :

HDR

Brand :

TE Connectivity

Body Breadth :

0.197 inch

Brand Name :

AMP

Minimum Operating Temperature :

- 65 C

Number Of PCB Rows :

1

Mounting Angle :

RIGHT ANGLE

MIL Conformance :

No

Number of Contacts :

2(POS)

Product Type :

Headers and Wire Housings

Voltage Rating Max :

40V

Insulator Color :

Black

Series :

AMPMODU Mod II

Row Spacing :

2.54 mm

Number of Contact Rows :

1

Number of Rows :

1

Terminal Length :

0.138 inch

Housing Color :

Black

Application :

Board-to-Board

PCB Contact Pattern :

RECTANGULAR

Packaging :

Box

Termination Style :

Solder Pin

Manufacturer :

TE Connectivity

Product Length :

7.7 mm

Type :

Wire to Board

Terminal Pitch :

2.54 mm

Mating Post Length :

6.6 mm

Option :

GENERAL PURPOSE

DIN Conformance :

No

Mixed Contacts :

No
