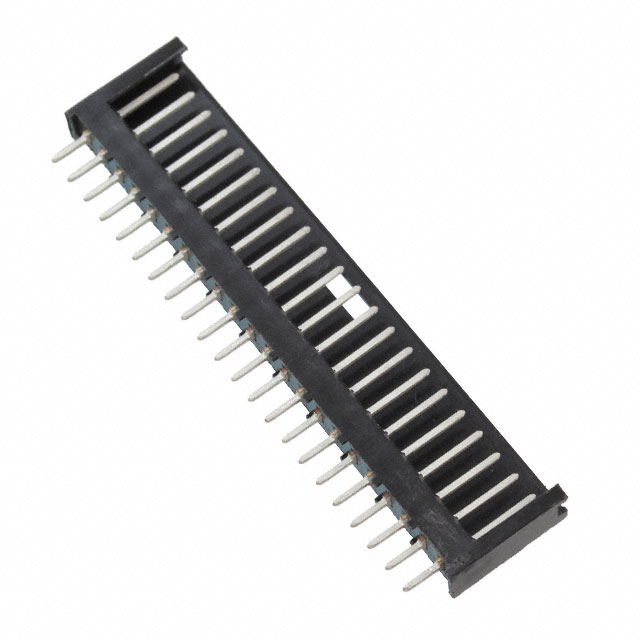

280376-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Housing Color :

Black

Option :

GENERAL PURPOSE

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Contact Finish Thickness - Mating :

118.1μin 3.00μm

Plating Thickness :

3.5μm

Number of Positions :

22

Contact Finish - Mating :

Tin

Material Flammability Rating :

UL94 V-0

Row Spacing :

2.54 mm

Mounting Type :

Through Hole

Insulation Height :

0.496 12.60mm

MIL Conformance :

No

Overall Contact Length :

0.563 14.30mm

UL Flammability Code :

94V-0

Filter Feature :

No

Pbfree Code :

yes

Insulation Material :

Thermoplastic

Contact Type :

Male Pin

Mount :

Through Hole

Contact Finish Thickness - Post :

118.1μin 3.00μm

PCB Mounting Orientation :

Vertical

Contact Shape :

Square

Fastening Type :

Detent Lock

Shrouded End Dimension :

1.65 mm

Current Rating (Amps) :

3A

Keyed :

No

RoHS Status :

RoHS Compliant

ELV :

Compliant

Packaging :

Bulk

Lead Length :

3.5052mm

Connector Type :

Header

IEC Conformance :

No

Approval Agency :

CSA

DIN Conformance :

No

Flammability Rating :

UL94 V-0

Contact Material :

Brass

Published :

2002

Contact Length - Post :

0.138 3.50mm

Factory Lead Time :

33 Weeks

Number of Rows :

1

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Depth :

5mm

Shrouding :

Shrouded - 3 Wall

Contact Length - Mating :

0.260 6.60mm

Contact Gender :

Male

Operating Temperature :

-40°C~80°C

Number of Positions Loaded :

All

Series :

AMPMODU Mod II

Termination :

Solder

Length :

58.5mm

Mating Post Length :

6.604mm

Style :

Board to Board or Cable

Voltage - Rated :

40V

Pitch - Mating :

0.100 2.54mm
