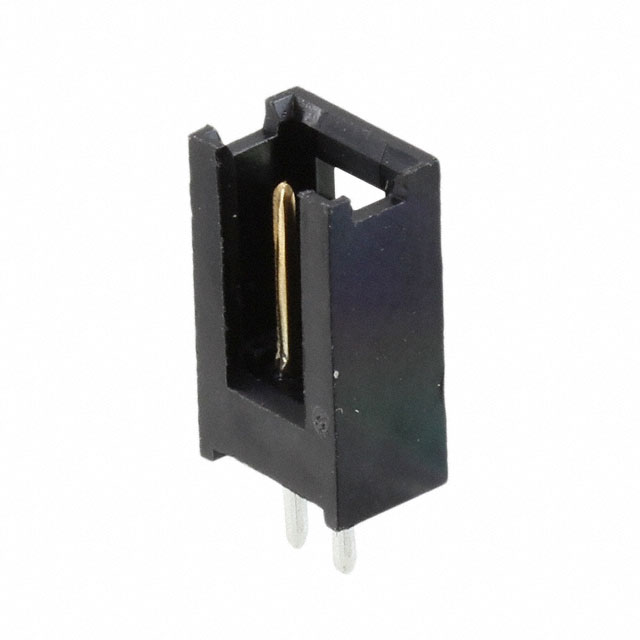

280370-2
Or copy the link below:
- Mfr.Part #
- 280370-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS 2.54MM
- Stock
- 1,498
- In Stock ：
- 1,498
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- UL Flammability Code :
- 94V-0
- Mounting Type :
- Through Hole
- Height :
- 12.8mm
- Contact Finish Thickness - Post :
- 98.4μin 2.50μm
- Contact Plating :
- Gold, Tin
- PCB Mounting Orientation :
- Vertical
- Published :
- 1997
- Mating Post Length :
- 6.604mm
- Flammability Rating :
- UL94 V-0
- Insulation Resistance :
- 5000000000Ohm
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Number Of PCB Rows :
- 1
- Packaging :
- Bulk
- Mixed Contacts :
- No
- Number of Positions :
- 2
- Number of Positions Loaded :
- All
- ECCN Code :
- EAR99
- Shrouded End Dimension :
- 1.65 mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Thermoplastic
- Contact Gender :
- Male
- Operating Temperature :
- -40°C~80°C
- Plating Thickness :
- 2.5μm
- REACH SVHC :
- No SVHC
- Current Rating :
- 3A
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Contact Shape :
- Square
- Material Flammability Rating :
- UL94 V-0
- HTS Code :
- 8536.69.40.40
- Option :
- GENERAL PURPOSE
- Lead Pitch :
- 2.54mm
- Lead Length :
- 3.5052mm
- Pitch - Mating :
- 0.100 2.54mm
- Depth :
- 5mm
- Style :
- Board to Board or Cable
- IEC Conformance :
- No
- DIN Conformance :
- No
- Approval Agency :
- CSA
- Mount :
- Through Hole
- Polarization Key :
- POLARIZED HOUSING
- Contact Material :
- Brass
- Insulation Color :
- Black
- RoHS Status :
- RoHS Compliant
- Fastening Type :
- Detent Lock
- Shrouding :
- Shrouded - 3 Wall
- Overall Contact Length :
- 0.563 14.30mm
- Number of Conductors :
- ONE
- Row Spacing :
- 2.54 mm
- ELV :
- Compliant
- Termination :
- Solder
- Factory Lead Time :
- 33 Weeks
- MIL Conformance :
- No
- Dielectric Withstanding Voltage :
- 750VAC V
- Contact Type :
- Male Pin
- Contact Length - Post :
- 0.138 3.50mm
- Pbfree Code :
- yes
- Lead Free :
- Lead Free
- Filter Feature :
- No
- Contact Length - Mating :
- 0.260 6.60mm
- High Temperature Housing :
- No
- Length :
- 7.7mm
- Voltage - Rated :
- 40V
- Insulation Height :
- 0.496 12.60mm
- Number of Rows :
- 1
- Series :
- AMPMODU Mod II
- Contact Finish - Mating :
- Gold
- Connector Type :
- Header
- Reliability :
- COMMERCIAL
- PCB Contact Pattern :
- RECTANGULAR
- Contact Finish - Post :
- Tin
- Datasheets
- 280370-2
AMPMODU Mod II Series 1-Row Header Solder Brass Bulk Through Hole Gold Thermoplastic 2-Position Board to Board or Cable 0.496 12.60mm Height
280370-2 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the AMPMODU Mod II Series.Part Through Hole is mounted to the part.As a result, the device runs at -40°C~80°C Operating Temperature.
280370-2 Features
AMPMODU Mod II series
280370-2 Applications
There are a lot of TE Connectivity AMP Connectors
280370-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
