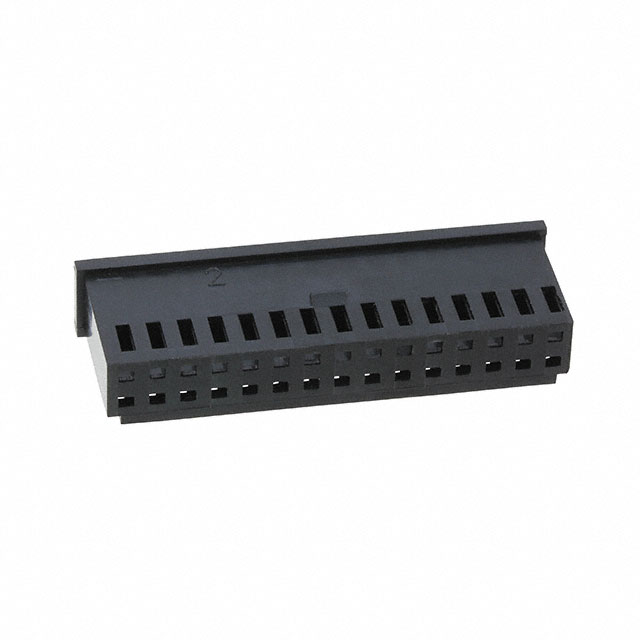

280368

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Mounting Type :

Free Hanging (In-Line)

Voltage - Rated DC :

250V

UL Flammability Code :

94V-1

Wire Gauge (Max) :

30 AWG

Depth :

13.7mm

Number of Rows :

2

Pitch :

0.100 2.54mm

Number of Poles :

30

Housing Material :

Thermoplastic

Flammability Rating :

UL94 V-1

Current Rating :

3A

Orientation :

Straight

Reference Standard :

UL

Height :

3.048mm

Packaging :

Bulk

Wire Gauge (Min) :

22 AWG

Lead Pitch :

2.54mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Free Hanging

Contact Type :

Female Socket

Contact Finish - Mating :

NOT SPECIFIED

Contact Termination :

Crimp

Min Operating Temperature :

-65°C

Polarization Key :

POLARIZED HOUSING

Note :

Contacts Not Included

Voltage - Rated AC :

250V

Mating Retention :

With

Material :

PPO, Thermoplastic

Length :

7.1mm

ELV :

Compliant

IEC Conformance :

No

REACH SVHC :

Unknown

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Factory Lead Time :

38 Weeks

Pbfree Code :

yes

Filter Feature :

No

Total Number of Contacts :

30

Max Operating Temperature :

105°C

Published :

1998

RoHS Status :

RoHS Compliant

Connector Type :

Receptacle

Option :

GENERAL PURPOSE

Contact Material :

Bronze

Contact Gender :

FEMALE

Mixed Contacts :

No

MIL Conformance :

No

Row Spacing :

0.100 (2.54mm)

Color :

Black

Working Voltage :

250V

Reliability :

COMMERCIAL

Series :

AMPMODU Mod II

DIN Conformance :

No
