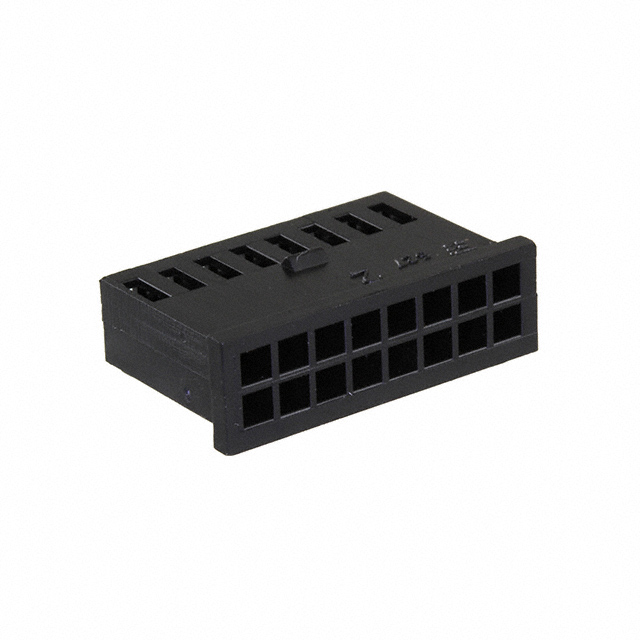

280366

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

ELV :

Compliant

Lead Pitch :

2.54mm

Lead Free :

Lead Free

Contact Finish - Mating :

NOT SPECIFIED

Depth :

13.7mm

Mounting Type :

Free Hanging (In-Line)

Number of Rows :

2

Note :

Contacts Not Included

Orientation :

Straight

Connector Type :

Receptacle

Width :

7.1mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Fastening Type :

Locking Ramp

Wire Gauge (Max) :

30 AWG

Contact Gender :

FEMALE

Series :

AMPMODU Mod II

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Published :

1998

Factory Lead Time :

38 Weeks

Reliability :

COMMERCIAL

Pbfree Code :

yes

Mating Retention :

With

Pitch :

0.100 2.54mm

Max Operating Temperature :

105°C

Polarization Key :

POLARIZED HOUSING

Mount :

Free Hanging, PCB

Min Operating Temperature :

-65°C

Filter Feature :

No

UL Flammability Code :

94V-1

Mixed Contacts :

No

REACH SVHC :

No SVHC

Contact Termination :

Crimp

MIL Conformance :

No

Color :

Black

Packaging :

Bulk

Contact Style :

SQ PIN-SKT

IEC Conformance :

No

Total Number of Contacts :

16

Length :

7.1mm

Current Rating :

3A

DIN Conformance :

No

Wire Gauge (Min) :

22 AWG

Contact Material :

Bronze

Height :

3.048mm

Material :

PPO, Thermoplastic

Option :

GENERAL PURPOSE

Row Spacing :

0.100 (2.54mm)

Number of Positions :

16

Reference Standard :

UL

Flammability Rating :

UL94 V-1

RoHS Status :

RoHS Compliant

Housing Material :

Thermoplastic
