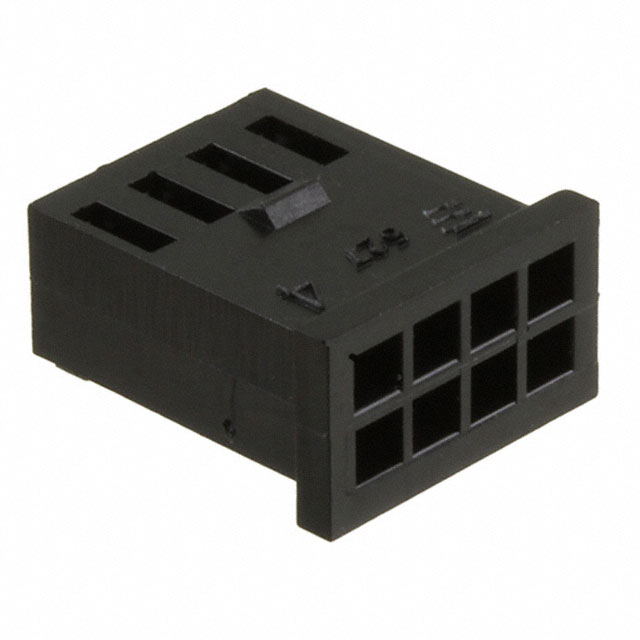

280365

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Width :

7.1mm

Factory Lead Time :

26 Weeks

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Height :

3.048mm

Total Number of Contacts :

8

Wire Gauge (Max) :

30 AWG

Current Rating :

3A

Max Operating Temperature :

105°C

Pitch :

0.100 2.54mm

Mixed Contacts :

No

Connector Type :

Receptacle

Orientation :

Straight

Min Operating Temperature :

-65°C

Mating Retention :

With

Wire Gauge (Min) :

22 AWG

Radiation Hardening :

No

Additional Feature :

LATCHED

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

AMPMODU Mod II

Contact Termination :

Crimp

Lead Pitch :

2.54mm

Mounting Type :

Free Hanging (In-Line)

ECCN Code :

EAR99

RoHS Status :

RoHS Compliant

Note :

Contacts Not Included

MIL Conformance :

No

Color :

Black

Option :

GENERAL PURPOSE

Flammability Rating :

UL94 V-1

Packaging :

Bulk

UL Flammability Code :

94V-0

Number of Rows :

2

Row Spacing :

0.100 (2.54mm)

Reliability :

COMMERCIAL

Polarization Key :

POLARIZED HOUSING

Contact Gender :

FEMALE

Contact Type :

Female Socket

Number of Conductors :

ONE

Number of Positions :

8

REACH SVHC :

Unknown

IEC Conformance :

No

Reference Standard :

UL

Housing Material :

Thermoplastic

Pbfree Code :

yes

Filter Feature :

No

Depth :

13.7mm

Length :

7.1mm

Published :

1998

DIN Conformance :

No

Mount :

Free Hanging
