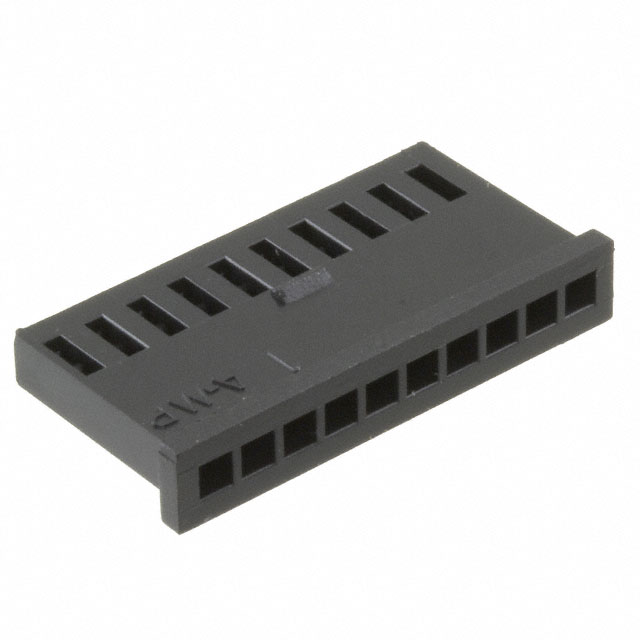

280362

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

RoHS Status :

RoHS Compliant

Mounting Type :

Free Hanging (In-Line)

Contact Termination :

Crimp

Option :

GENERAL PURPOSE

Contact Material :

Bronze

Flammability Rating :

UL94 V-1

Max Operating Temperature :

105°C

Mixed Contacts :

No

Number of Positions :

10

Packaging :

Bulk

MIL Conformance :

No

Lead Free :

Lead Free

Wire/Cable Gauge :

30 AWG

Connector Type :

Receptacle

Width :

4.8mm

IEC Conformance :

No

ECCN Code :

EAR99

Reference Standard :

UL

Orientation :

Straight

Series :

AMPMODU Mod II

Contact Gender :

FEMALE

Row Spacing :

2.54 mm

Pitch :

0.100 2.54mm

Fastening Type :

Locking Ramp

HTS Code :

8536.69.40.40

REACH SVHC :

Unknown

Filter Feature :

No

Number of Rows :

1

Wire Gauge (Min) :

22 AWG

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Polarization Key :

POLARIZED HOUSING

ELV :

Compliant

Wire Gauge (Max) :

30 AWG

Reliability :

COMMERCIAL

Mount :

Free Hanging, PCB

Material :

PPO, Thermoplastic

Contact Style :

SQ PIN-SKT

Current Rating :

3A

Published :

1999

Contact Finish - Mating :

NOT SPECIFIED

Total Number of Contacts :

10

Lead Pitch :

2.54mm

Factory Lead Time :

25 Weeks

Min Operating Temperature :

-65°C

Length :

7.1mm

Height :

3.048mm

Depth :

13.7mm

DIN Conformance :

No

Mating Retention :

With

Color :

Black

Housing Material :

Thermoplastic

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Note :

Contacts Not Included
