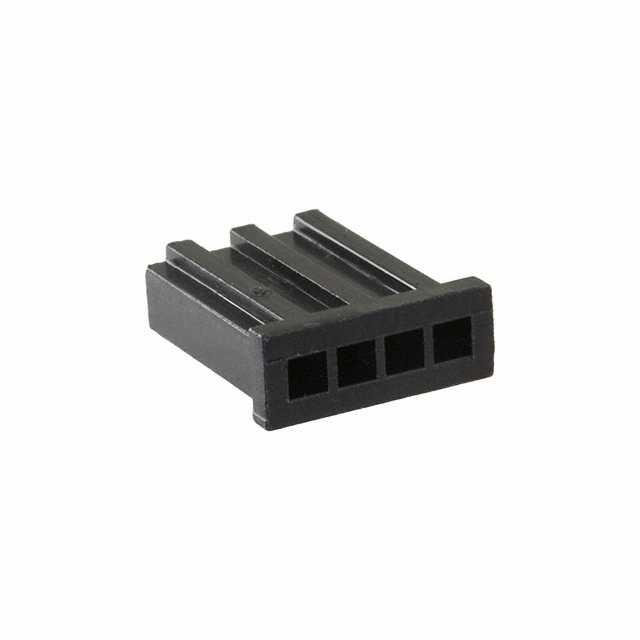

280359

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Contact Material :

Bronze

Mating Retention :

With

Contact Termination :

Crimp

Published :

1999

Series :

AMPMODU Mod II

Factory Lead Time :

39 Weeks

Max Operating Temperature :

105°C

Additional Feature :

LATCHED

Flammability Rating :

UL94 V-1

Total Number of Contacts :

4

Reliability :

COMMERCIAL

Height :

3.048mm

Number of Positions :

4

Min Operating Temperature :

-65°C

Color :

Black

Filter Feature :

No

Contact Gender :

FEMALE

Mount :

Free Hanging, PCB

Pitch :

0.100 2.54mm

Number of Rows :

1

Depth :

13.7mm

Wire Gauge (Max) :

30 AWG

Contact Plating :

Bronze, Gold

Connector Type :

Receptacle

Mixed Contacts :

No

Note :

Contacts Not Included

Housing Material :

Thermoplastic

Option :

GENERAL PURPOSE

Row Spacing :

2.54 mm

RoHS Status :

RoHS Compliant

Wire/Cable Gauge :

30 AWG

MIL Conformance :

No

Material :

PPO, Thermoplastic

Reference Standard :

UL

Width :

4.8mm

Lead Pitch :

2.54mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Radiation Hardening :

No

Contact Type :

Female Socket

Orientation :

Straight

ELV :

Compliant

REACH SVHC :

No SVHC

Wire Gauge (Min) :

22 AWG

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Mounting Type :

Free Hanging (In-Line)

Length :

7.1mm

ECCN Code :

EAR99

Polarization Key :

POLARIZED HOUSING

DIN Conformance :

No

Packaging :

Bulk

Current Rating :

3A

IEC Conformance :

No
