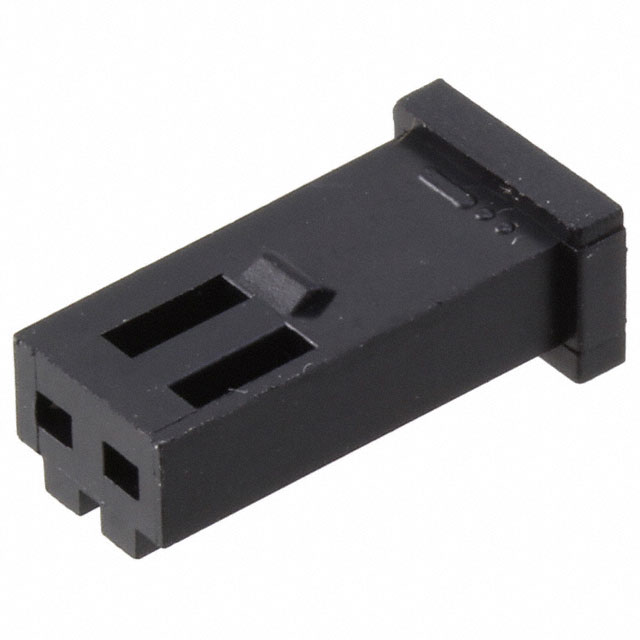

280358

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Flammability Rating :

UL94 V-1

Reference Standard :

UL

IEC Conformance :

No

ELV :

Compliant

Height :

3.048mm

Orientation :

Straight

Contact Style :

SQ PIN-SKT

Row Spacing :

2.54 mm

Current Rating :

3A

Number of Positions :

2

Pbfree Code :

yes

Mating Retention :

With

Mixed Contacts :

No

Wire Gauge (Max) :

26 AWG

Mount :

Free Hanging, PCB

Lead Pitch :

2.54mm

Filter Feature :

No

Min Operating Temperature :

-65°C

Wire/Cable Gauge :

30 AWG

Pitch :

0.100 2.54mm

Max Operating Temperature :

105°C

Packaging :

Bulk

Published :

1999

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Connector Type :

Receptacle

Width :

4.8mm

Housing Material :

Thermoplastic

Polarization Key :

POLARIZED HOUSING

Factory Lead Time :

27 Weeks

Length :

7.1mm

Number of Rows :

1

Contact Gender :

FEMALE

Option :

GENERAL PURPOSE

Series :

AMPMODU Mod II

MIL Conformance :

No

RoHS Status :

RoHS Compliant

Color :

Black

Reliability :

COMMERCIAL

Lead Free :

Lead Free

Radiation Hardening :

No

Total Number of Contacts :

2

Mounting Type :

Free Hanging (In-Line)

Contact Termination :

Crimp

REACH SVHC :

No SVHC

Contact Plating :

Gold

Material :

PPO, Thermoplastic

Note :

Contacts Not Included

Wire Gauge (Min) :

28 AWG

Fastening Type :

Locking Ramp

Depth :

13.7mm
