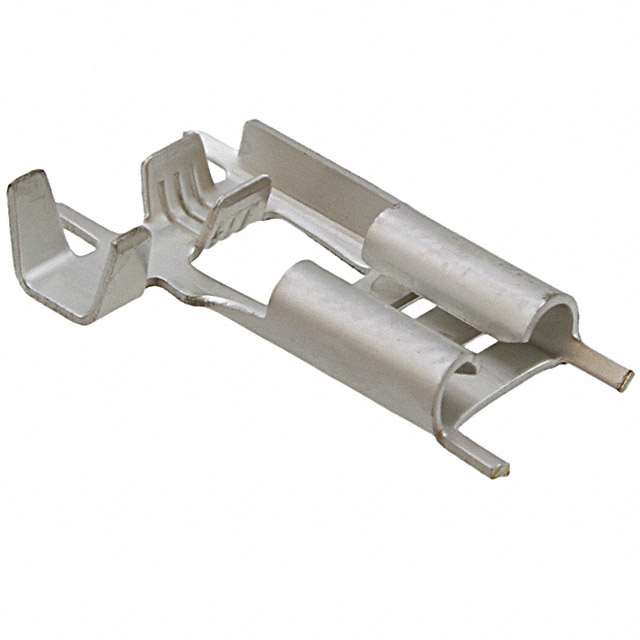

280050-7
Or copy the link below:
- Mfr.Part #
- 280050-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN QC RCPT 15.5-20AWG 0.250
- Stock
- 240
- In Stock ：
- 240
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- Orientation :
- RIGHT ANGLE
- Mount :
- Free Hanging
- Insulation Diameter :
- 0.091 ~ 0.130 (2.31mm ~ 3.30mm)
- Length - Tab :
- 0.299 7.60mm
- Tab Thickness :
- 0.032 0.81mm
- Wire Gauge (Max) :
- 20 AWG
- Max Operating Temperature :
- 105°C
- Width - Tab :
- 0.250 6.35mm
- Termination :
- Crimp
- HTS Code :
- 8536.90.40.00
- Min Operating Temperature :
- -25°C
- Flammability Rating :
- UL94 V-2
- ECCN Code :
- EAR99
- Wire Gauge (Min) :
- 5 AWG
- Factory Lead Time :
- 10 Weeks
- Wire Gauge :
- 15.5-20 AWG
- Sealable :
- No
- Insulated Wire Support :
- yes
- Wire/Cable Type :
- Discrete
- Series :
- Faston
- Plating Thickness :
- 1μm
- Depth :
- 7.6mm
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Length :
- 16.8mm
- Mating Tab Width :
- 6.35mm
- Packaging :
- Tape and Reel (TR)
- Wire/Cable Diameter :
- 3.302 mm
- Terminal Type :
- Angled - 90°, Flag
- Terminal and Terminal Block Type :
- PUSH-ON TERMINAL
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Body Material :
- Bronze
- ELV :
- Compliant
- Wire Cross Section :
- 1.5 mm2
- Insulation :
- Non-Insulated
- Contact Plating :
- Tin
- RoHS Status :
- RoHS Compliant
- Contact Material :
- Phosphor Bronze
- Lead Free :
- Not Applicable
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Gender :
- FEMALE
- Published :
- 2004
- Datasheets
- 280050-7
280050-7 datasheet pdf and Terminals - Quick Connects, Quick Disconnect Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
