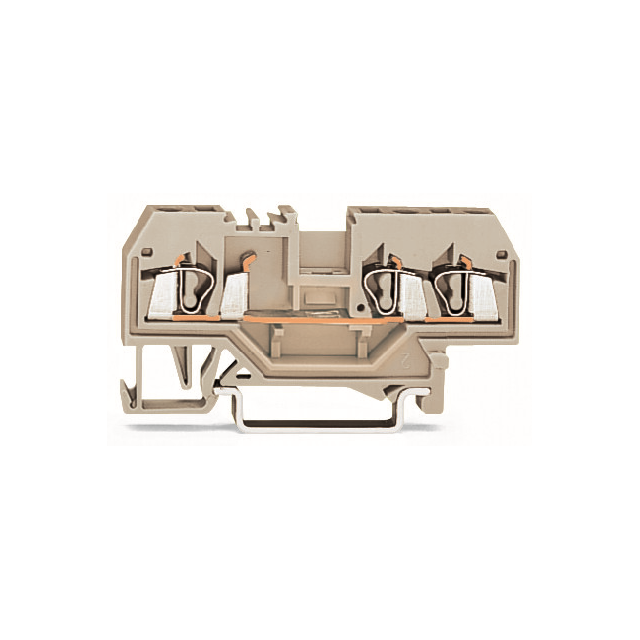

280-993

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Height :

28mm

Mounting Style :

Din-Rail

Min. stripping length :

8mm

Number of Contacts :

3

Manufacturer part # :

280-993

Number of Rows :

3

Gender :

FEMALE

Number of Positions/Contacts :

4

Connectable conductor cross section multi-wired :

0.2 - 2.5

HTS :

8536.90.40.00

Shell Material :

PA

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 2.5

Current Rating (Max) :

22(A)

AWG (min.) :

24

Voltage - UL :

-

Length :

64

Wire Gauge or Range - AWG :

12-28 AWG

RoHS :

yes

Type :

Feed-Through Terminal Block

Number of Pins :

3

Minimum Operating Temperature (°C) :

-60

Number of Levels :

1

No. of rows :

1

Nominal current :

22A

Wire Gauge :

12-28(AWG)

Housing Color :

Light Gray

Width :

5mm

Connectable conductor cross section solid-core :

0.2 - 2.5

Configuration :

L

Number of Positions :

3

Product Status :

Active

Mounting Type :

DIN Rail

Cross section (flexible) (max.) :

2.50mm²

Rated current In :

22

Termination Method :

Spring Clamp

Number of Circuits :

1

Note :

n/a

Inflammability class of insulation material according to with UL94 :

V0

Operating Voltage (Max) :

550V

Maximum Current Rating (A) :

22

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Termination Style :

Push In, Spring

Contact Material :

Electrolytic Copper

Packaging :

Box

Color :

Light Gray

AWG max. :

14

Terminal - Width :

5.0mm

Connection :

Pull spring

Cross section (inflexible) (min.) :

0.20mm²

Current - IEC :

22 A

Material Flammability Rating :

UL94 V-0

Rad Hardened :

No

Current Rating :

22 A

Disconnect Type :

-

Manufacturer :

Wago

Mount :

Through Hole

Number of Contact Rows :

3

Depth :

28

Stripping length (max.) :

9mm

Contact Pitch (mm) :

Not Required(mm)

Cross section (inflexible) (max.) :

2.50mm²

Dim :

(W x H) 5 mm x 28 mm

Content :

100pc(s)

Stripping Length :

8mm ~ 9mm

Wire Gauge or Range - mm² :

0.08-2.5mm²

Nominal current - rounded value :

22A

Series :

WINSTA MIDI

PPAP :

No

Shell Size :

-

Flammability Rating :

UL94 V-0

Automotive :

No

Mounting :

DIN Rail

Package :

Box

Contact Plating :

Tin

Maximum Operating Temperature (°C) :

105

Pins per row :

3

Nominal voltage :

550V

ECCN (US) :

EAR99

Housing Material :

Polyamide 6/6

Voltage - IEC :

550V

Approvals :

CSA, UR

Fuse Type :

-

Features :

Complies with ATEX Ex-e II standards

Maximum Voltage Rating :

550V

Clamp width :

5mm

EU RoHS :

Compliant

Industrial packaging :

yes

Cross section (flexible) (min.) :

0.20mm²
