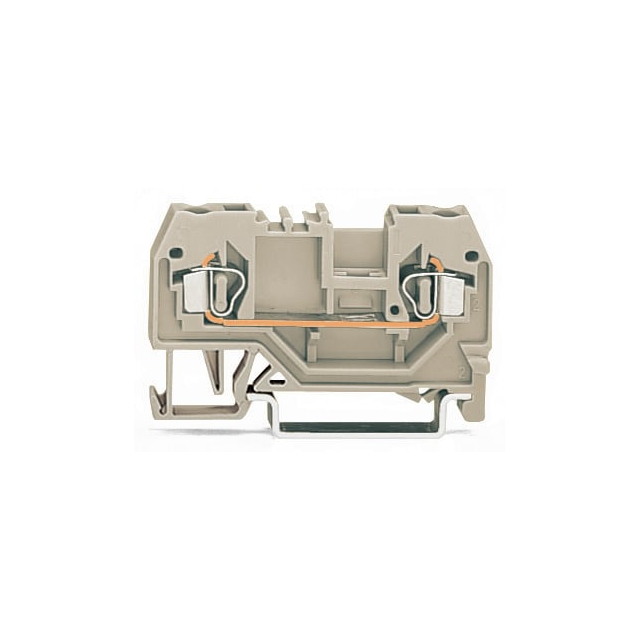

280-992

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Manufacturer part # :

280-992

Connectable conductor cross section multi-wired :

0.2 - 2.5

Voltage - IEC :

550V

Product Status :

Active

Connectable conductor cross section solid-core :

0.2 - 2.5

Number of Rows :

2

Shell Material :

PA

Maximum Current Rating (A) :

23

ECCN (US) :

EAR99

Shell Size :

-

Packaging :

Box

Series :

WINSTA MIDI

Stripping Length :

8mm ~ 9mm

Industrial packaging :

yes

Width :

5mm

Connection :

Pull spring

Depth :

28

Type :

Terminal Block

Min. stripping length :

8mm

Housing Material :

Polyamide 6/6

Length :

53

Stripping length (max.) :

9mm

Pins per row :

2

Wire Gauge or Range - mm² :

0.08-2.5mm²

Rated current In :

23

PPAP :

No

Maximum Voltage Rating :

550V

Housing Color :

Light Gray

Wire Gauge :

12-28(AWG)

Fuse Type :

-

Material Flammability Rating :

UL94 V-0

Number of Contact Rows :

2

Number of Levels :

1

Wire Gauge or Range - AWG :

12-28 AWG

Content :

100pc(s)

Height :

28mm

No. of rows :

1

Package :

Box

Disconnect Type :

-

Nominal voltage :

550V

Color :

White

Note :

n/a

HTS :

8536.90.40.00

RoHS :

yes

Contact Pitch (mm) :

Not Required(mm)

Number of Positions/Contacts :

4

Number of Positions :

2

Approvals :

CSA, UR

Nominal current :

23A

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 2.5

Number of Circuits :

1

Terminal - Width :

5.0mm

Inflammability class of insulation material according to with UL94 :

V0

Features :

Complies with ATEX Ex-e II standards

Clamp width :

5mm

Cross section (inflexible) (min.) :

0.08mm²

Mounting Style :

Din-Rail

Dim :

(W x H) 5 mm x 28 mm

AWG max. :

14

Configuration :

L

Mounting :

DIN Rail

Mounting Type :

DIN Rail

Nominal current - rounded value :

23A

EU RoHS :

Compliant

Voltage - UL :

-

Cross section (flexible) (max.) :

2.50mm²

Cross section (flexible) (min.) :

0.08mm²

Current Rating (Max) :

23(A)

AWG (min.) :

28

Rad Hardened :

No

Manufacturer :

Wago

Operating Voltage (Max) :

550V

Gender :

FEMALE

Number of Contacts :

2

Termination Style :

Push In, Spring

Current - IEC :

23 A

Automotive :

No

Cross section (inflexible) (max.) :

2.50mm²

Maximum Operating Temperature (°C) :

105

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Minimum Operating Temperature (°C) :

-60
