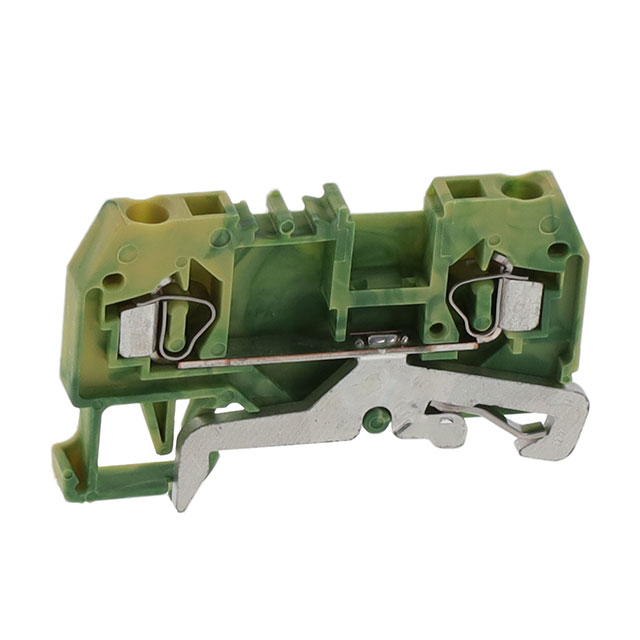

280-907

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Dim :

(W x H) 5 mm x 28 mm

Features :

-

Note :

n/a

Connection :

Pull spring

Orientation :

RIGHT ANGLE

Number of Circuits :

1

Voltage - IEC :

-

Body Orientation :

RIGHT ANGLE

Product Height (mm) :

28(mm)

Cross section (inflexible) (min.) :

0.08mm²

Wire/Cable Gauge :

28 AWG

Manufacturer :

Wago

Mounting Style :

Din-Rail

RoHS :

yes

Wire Gauge :

12-28(AWG)

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Lead Pitch :

5 mm

Min. stripping length :

8mm

Type :

Grounding Block

Approvals :

CSA, UR

Housing Color :

Green/yellow

AWG (min.) :

28

Voltage Rating :

600 V

Rated Voltage :

800V

Stripping length (max.) :

9mm

Lead Free :

Lead Free

Wire Size :

14 → 12 AWG

REACH SVHC :

No SVHC

Product Length (mm) :

54(mm)

Gender :

F

Nominal current - rounded value :

24A

Number of Positions :

2

Cross section (inflexible) (max.) :

2.50mm²

Housing Material :

Polyamide 6/6

Color :

Green, Yellow

Product Status :

Active

Packaging :

Box

Nominal current :

24A

Termination Style :

Push In, Spring

Stripping Length :

8mm ~ 9mm

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Clamp width :

5mm

Number of Contacts :

2(POS)

Number of Levels :

1

No. of rows :

1

Number of Contact Rows :

2

Wire Gauge or Range - mm² :

0.08-2.5mm²

Shell Size :

-

Rated Current :

24A

Industrial packaging :

yes

Base Product Number :

280

Contact Material :

Steel

Disconnect Type :

-

Cross section (flexible) (min.) :

0.08mm²

Length :

54

Voltage - UL :

-

Number of Rows :

1

Content :

100pc(s)

Flammability Rating :

UL94 V-0

Current Rating :

100A

Series :

WINSTA MIDI

Material Flammability Rating :

-

Terminal - Width :

5.0mm

Cross section (flexible) (max.) :

2.50mm²

Height :

28mm

Fuse Type :

-

AWG max. :

14

Depth :

28

Mounting Type :

DIN Rail

Width :

5mm

Package :

Bulk

Manufacturer part # :

280-907

Wire Gauge or Range - AWG :

12-28 AWG

Connectable conductor cross section solid-core :

0.08 - 2.5

Inflammability class of insulation material according to with UL94 :

V0

Pins per row :

2

Shell Material :

PA

Number of Positions/Contacts :

3

Connectable conductor cross section multi-wired :

0.08 - 2.5

Configuration :

Terre

Contact Pitch (mm) :

Not Required(mm)

Rad Hardened :

No

Number of Pins :

2

Product Depth (mm) :

5(mm)
