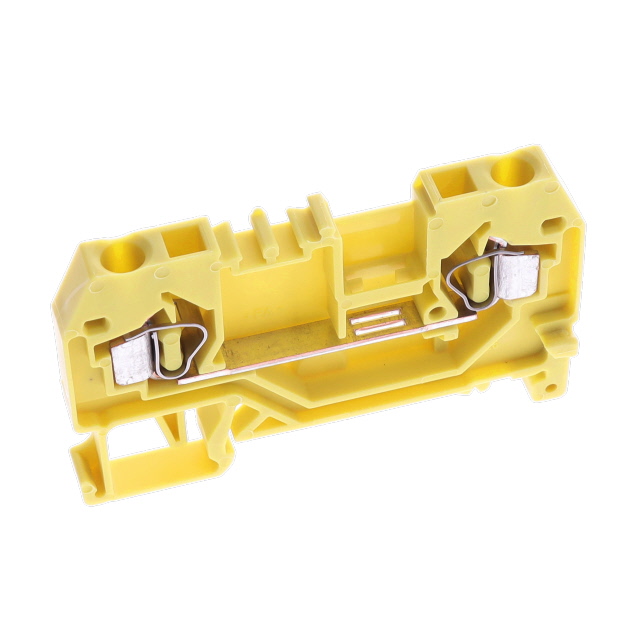

280-906

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Connectable conductor cross section solid-core :

0.08 - 2.5

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Operating Voltage (Max) :

800V

Number of Contacts :

2(POS)

Approvals :

CSA, UR

Cross section (inflexible) (max.) :

2.50mm²

Gender :

Male

Product Depth (mm) :

5(mm)

AWG (min.) :

28

Pins per row :

2

Mounting Style :

Din-Rail

Number of Circuits :

1

Package :

Box

Rated Voltage :

800V

Product Status :

Active

Connectable conductor cross section multi-wired :

0.08 - 2.5

Type :

Standard Block

Wire Gauge or Range - mm² :

0.08-2.5mm²

Product Length (mm) :

53(mm)

Series :

WINSTA MIDI

Manufacturer part # :

280-906

Nominal voltage :

800V

Note :

n/a

Termination Style :

Push In, Spring

Rated Current :

24A

Content :

100pc(s)

Stripping length (max.) :

9mm

Length :

53

Wire Gauge :

12-28(AWG)

Packaging :

Box

Contact Pitch (mm) :

Not Required(mm)

Nominal current - rounded value :

24A

Voltage - IEC :

800V

No. of rows :

1

Color :

Yellow

Termination Method :

Screw

Nominal current :

24A

Cross section (flexible) (max.) :

2.50mm²

Shell Size :

-

Voltage - UL :

-

Mounting Type :

DIN Rail

Cross section (inflexible) (min.) :

0.08mm²

Number of Positions/Contacts :

3

Housing Color :

Yellow

Features :

-

Clamp width :

5mm

Cross section (flexible) (min.) :

0.08mm²

Current Rating (Max) :

24(A)

Min. stripping length :

8mm

Contamination level :

3

Wire Gauge or Range - AWG :

12-28 AWG

Manufacturer :

Wago

Width :

5mm

Stripping Length :

8mm ~ 9mm

Rad Hardened :

No

Number of Positions :

2

Shell Material :

PA

Number of Contact Rows :

2

Height :

28mm

Industrial packaging :

yes

Material Flammability Rating :

UL94 V-0

Rated current In :

24

Connection :

Pull spring

Dim :

(W x H) 5 mm x 28 mm

AWG max. :

14

Product Height (mm) :

28(mm)

Depth :

28

Number of Levels :

1

Material - Insulation :

Polyamide (PA66), Nylon 6/6

RoHS :

yes

Inflammability class of insulation material according to with UL94 :

V0

Disconnect Type :

-

Terminal - Width :

5.0mm

Current - IEC :

24 A

Fuse Type :

-
