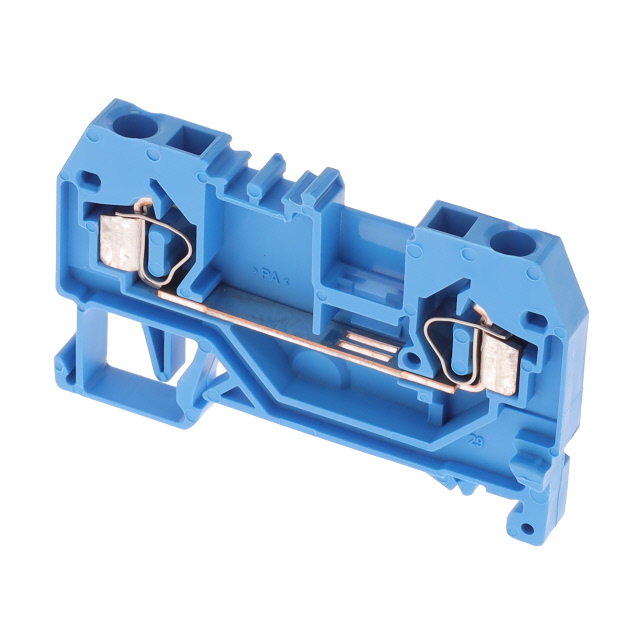

280-904

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Base Product Number :

280

Number of Contacts :

2(POS)

Product Length (mm) :

53(mm)

Dim :

(W x H) 5 mm x 28 mm

Housing Color :

Blue

Depth :

28

Shell Material :

PA

Content :

100pc(s)

Product Status :

Active

Product Height (mm) :

28(mm)

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Current Rating (Max) :

24(A)

Color :

Blue

Packaging :

Box

Features :

Complies with ATEX Ex I standards

Number of Contact Rows :

2

Wire Gauge or Range - AWG :

12-28 AWG

Termination Style :

Push In, Spring

Shell Size :

-

Cross section (inflexible) (max.) :

2.50mm²

Number of Levels :

1

Manufacturer :

Wago

Current Rating :

24A

Pitch :

5mm

AWG max. :

14

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Type :

Standard Block

Terminal - Width :

5.0mm

Manufacturer part # :

280-904

Nominal current - rounded value :

24A

Note :

n/a

Length :

53

Cross section (inflexible) (min.) :

0.08mm²

Voltage Rating :

800 V

Configuration :

N

Rated Current :

24A

Gender :

Male

Connectable conductor cross section solid-core :

0.08 - 2.5

Connection :

Pull spring

Contamination level :

3

Stripping Length :

8mm ~ 9mm

Clamp width :

5mm

Fuse Type :

-

Number of Circuits :

1

Voltage - UL :

-

Nominal voltage :

800V

Rad Hardened :

No

Mounting Style :

T DIN RAIL

Product Depth (mm) :

5(mm)

RoHS :

yes

Number of Positions/Contacts :

3

Voltage - IEC :

800V

Min. stripping length :

8mm

Industrial packaging :

yes

Wire Gauge or Range - mm² :

0.08-2.5mm²

No. of rows :

1

Approvals :

CSA, UR

Disconnect Type :

-

Inflammability class of insulation material according to with UL94 :

V0

Current - IEC :

24 A

Rated current In :

24

Stripping length (max.) :

9mm

Operating Voltage (Max) :

800V

Cross section (flexible) (max.) :

2.50mm²

Material Flammability Rating :

-

Rated Voltage :

800V

AWG (min.) :

28

Height :

28mm

Mounting Type :

DIN Rail

Contact Pitch (mm) :

Not Required(mm)

Package :

Bulk

Pins per row :

2

Cross section (flexible) (min.) :

0.08mm²

Number of Positions :

2

Nominal current :

24A

Width :

5mm

Wire Gauge :

12-28(AWG)

Connectable conductor cross section multi-wired :

0.08 - 2.5

Series :

WINSTA MIDI

Termination Method :

Clamp
