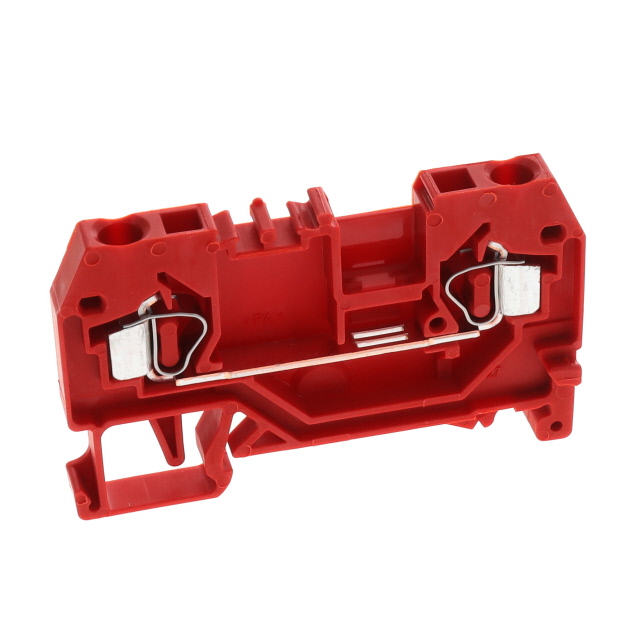

280-903

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Shell Size :

-

Nominal voltage :

800V

Rated Current :

24A

Cross section (inflexible) (max.) :

2.50mm²

Terminal - Width :

5.0mm

Number of Levels :

1

Current Rating (Max) :

24(A)

Depth :

28

Inflammability class of insulation material according to with UL94 :

V0

Stripping Length :

8mm ~ 9mm

Product Length (mm) :

5(mm)

Number of Contact Rows :

2

Gender :

Male

Number of Circuits :

1

Rad Hardened :

No

No. of rows :

1

Body Orientation :

Straight

Stripping length (max.) :

9mm

Number of Contacts :

2(POS)

Operating Voltage (Max) :

800V

Cross section (flexible) (max.) :

2.50mm²

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Approvals :

CSA, UR

Manufacturer :

Wago

Clamp width :

5mm

Voltage - IEC :

800V

AWG max. :

14

Product Depth (mm) :

53(mm)

Pins per row :

2

Number of Positions/Contacts :

3

Cross section (flexible) (min.) :

0.08mm²

RoHS :

yes

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Type :

Terminal Block

Width :

5mm

Rated Voltage :

800V

Fuse Type :

-

Series :

WINSTA MIDI

Cross section (inflexible) (min.) :

0.08mm²

Wire Gauge :

12-28(AWG)

Rated current In :

24

Industrial packaging :

yes

Min. stripping length :

8mm

Product Status :

Active

Connectable conductor cross section solid-core :

0.08 - 2.5

Nominal current :

24A

Wire Gauge or Range - AWG :

12-28 AWG

Shell Material :

PA

Disconnect Type :

-

Content :

100pc(s)

Length :

53

Housing Material :

Polyamide 6/6

Connectable conductor cross section multi-wired :

0.08 - 2.5

Material Flammability Rating :

UL94 V-0

AWG (min.) :

28

Current - IEC :

24 A

Color :

Red

Dim :

(W x H) 5 mm x 28 mm

Features :

-

Housing Color :

Red

Product Height (mm) :

28(mm)

Nominal current - rounded value :

24A

Contact Pitch (mm) :

Not Required(mm)

Package :

Box

Contamination level :

3

Height :

28mm

Termination Style :

Push In, Spring

Number of Positions :

2

Wire Gauge or Range - mm² :

0.08-2.5mm²

Packaging :

Box

Connection :

Pull spring

Mounting Type :

DIN Rail

Mounting Style :

Din-Rail

Voltage - UL :

-

Manufacturer part # :

280-903

Note :

n/a
