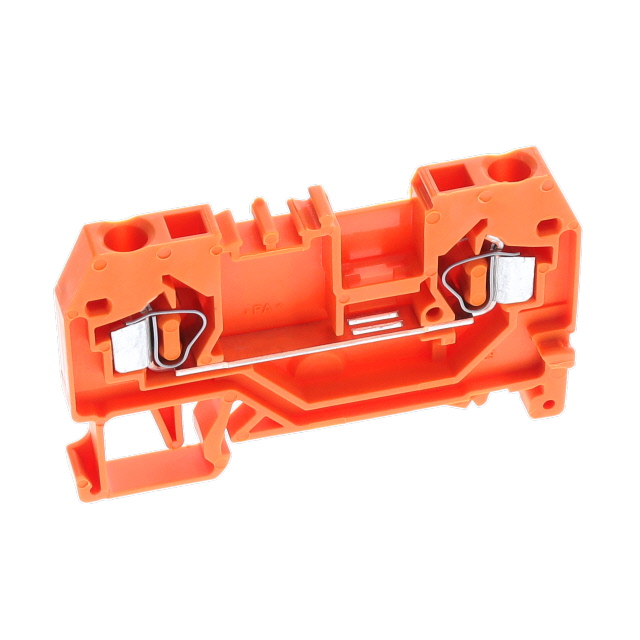

280-902

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Maximum Voltage Rating :

800V

Clamp width :

5mm

HTS :

8536.90.40.00

Dim :

(W x H) 5 mm x 28 mm

Nominal current - rounded value :

24A

Current Rating (Max) :

24(A)

Number of Contacts :

2

Type :

Terminal Block

Mounting Style :

Din-Rail

Min. stripping length :

8mm

Connectable conductor cross section solid-core :

0.08 - 2.5

Number of Contact Rows :

2

Number of Levels :

1

Wire Gauge or Range - mm² :

0.08-2.5mm²

Voltage - UL :

-

Connection :

Pull spring

Length :

53

Termination Method :

Clamp

Shell Material :

PA

Features :

-

PPAP :

No

Current - IEC :

24 A

Contact Pitch (mm) :

Not Required(mm)

Automotive :

No

Operating Voltage (Max) :

800V

Stripping Length :

8mm ~ 9mm

Shell Size :

-

Height :

28mm

Cross section (flexible) (min.) :

0.08mm²

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Manufacturer part # :

280-902

Maximum Operating Temperature (°C) :

105

Number of Positions/Contacts :

3

Current Rating :

24A

Cross section (inflexible) (min.) :

0.08mm²

Inflammability class of insulation material according to with UL94 :

V0

Wire Gauge or Range - AWG :

12-28 AWG

Wire Gauge :

12-28(AWG)

Nominal voltage :

800V

Gender :

Male

Disconnect Type :

-

AWG (min.) :

28

Material Flammability Rating :

UL94 V-0

Color :

Orange

AWG max. :

14

Voltage - IEC :

800V

Voltage Rating :

800 V

Rated current In :

24

Stripping length (max.) :

9mm

Approvals :

CSA, UR

Content :

100pc(s)

Number of Circuits :

1

Cross section (flexible) (max.) :

2.50mm²

Width :

5mm

Fuse Type :

-

Industrial packaging :

yes

Connectable conductor cross section multi-wired :

0.08 - 2.5

Rad Hardened :

No

Minimum Operating Temperature (°C) :

-60

Maximum Current Rating (A) :

24

RoHS :

yes

No. of rows :

1

EU RoHS :

Compliant

Depth :

28

Termination Style :

Push In, Spring

Weight :

5.428g

Packaging :

Box

Manufacturer :

Wago

Cross section (inflexible) (max.) :

2.50mm²

Series :

WINSTA MIDI

Number of Positions :

2

Housing Material :

Polyamide 6/6

Terminal - Width :

5.0mm

Mounting Type :

DIN Rail

ECCN (US) :

EAR99

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Note :

n/a

Product Status :

Active

Pins per row :

2

Nominal current :

24A

Pitch :

5mm

Housing Color :

Orange

Mounting :

DIN Rail

Number of Rows :

2
