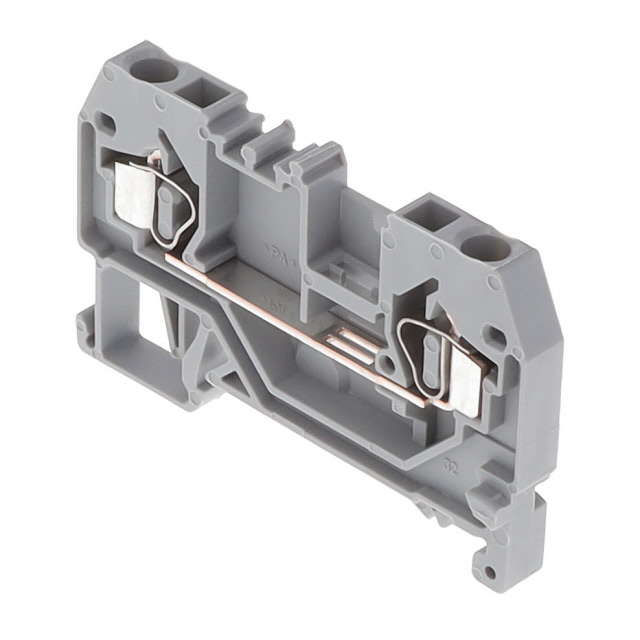

280-901

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Rated current In :

24

Voltage - UL :

-

Manufacturer part # :

280-901

Number of Positions/Contacts :

3

Number of Positions :

2

Configuration :

L

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Connectable conductor cross section multi-wired :

0.08 - 2.5

Shell Size :

-

Contamination level :

3

Cross section (inflexible) (min.) :

0.08mm²

Approvals :

CSA, UR

Mounting Type :

DIN Rail

Product Status :

Active

Termination Style :

Push In, Spring

Type :

Terminal Block

Height :

28mm

Product Depth (mm) :

53(mm)

Industrial packaging :

yes

Housing Material :

Polyamide 6/6

Operating Voltage (Max) :

800V

Number of Contact Rows :

2

Min. stripping length :

8mm

Disconnect Type :

-

Connectable conductor cross section solid-core :

0.08 - 2.5

Mounting Style :

Din-Rail

Depth :

28

AWG (min.) :

28

Clamp width :

5mm

Gender :

Male

Current Rating (Max) :

24(A)

Number of Contacts :

2(POS)

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Features :

-

Inflammability class of insulation material according to with UL94 :

V0

Number of Circuits :

1

Shell Material :

PA

Material Flammability Rating :

-

Cross section (flexible) (max.) :

2.50mm²

Note :

n/a

Voltage - IEC :

800V

Wire Gauge or Range - mm² :

0.08-2.5mm²

Wire Gauge or Range - AWG :

12-28 AWG

Contact Pitch (mm) :

Not Required(mm)

Package :

Bulk

Width :

5mm

Product Length (mm) :

5(mm)

Nominal current :

24A

Rated Voltage :

800V

Wire Gauge :

12-28(AWG)

Stripping Length :

8mm ~ 9mm

Color :

Gray

Length :

53

Housing Color :

Gray

Stripping length (max.) :

9mm

Current - IEC :

24 A

AWG max. :

14

Packaging :

Box

Fuse Type :

-

Series :

WINSTA MIDI

No. of rows :

1

Terminal - Width :

5.0mm

Content :

100pc(s)

Base Product Number :

280

Cross section (inflexible) (max.) :

2.50mm²

RoHS :

yes

Pins per row :

2

Connection :

Pull spring

Rad Hardened :

No

Nominal current - rounded value :

24A

Product Height (mm) :

28(mm)

Rated Current :

24A

Number of Levels :

1

Nominal voltage :

800V

Cross section (flexible) (min.) :

0.08mm²

Dim :

(W x H) 5 mm x 28 mm

Manufacturer :

Wago
