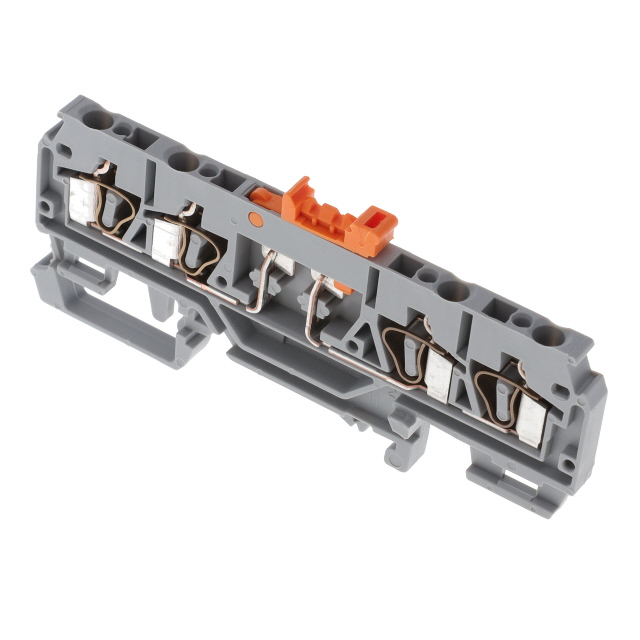

280-874

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Terminal - Width :

5.0mm

Dim :

(W x H) 5 mm x 28.50 mm

Min. stripping length :

8mm

Connectable conductor cross section solid-core :

0.08 - 2.5

Termination Style :

Push In, Spring

Industrial packaging :

yes

Depth :

28.5

Shell Material :

PA

Series :

WINSTA MIDI special

Features :

+ swivelling cutter,+ test option

Pins per row :

4

Wire Gauge or Range - mm² :

0.08-2.5mm²

Material Flammability Rating :

UL94 V-0

Voltage - IEC :

400V

Clamp width :

5mm

Shell Size :

-

Length :

89

Nominal current - rounded value :

16A

Number of Circuits :

1

Note :

n/a

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Approvals :

CSA, UR

Number of Levels :

1

Cross section (flexible) (min.) :

0.08mm²

Nominal current :

16A

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Package :

Box

Connectable conductor cross section multi-wired :

0.08 - 2.5

Cross section (flexible) (max.) :

2.50mm²

Cross section (inflexible) (min.) :

0.08mm²

Fuse Type :

-

Stripping length (max.) :

9mm

Gender :

Male

Number of Positions/Contacts :

3

Manufacturer :

Wago

Disconnect Type :

Switch, Knife

Current - IEC :

16 A

Number of Positions :

4

Voltage - UL :

-

AWG max. :

14

RoHS :

yes

Connection :

Pull spring

Inflammability class of insulation material according to with UL94 :

V0

Width :

5mm

Cross section (inflexible) (max.) :

2.50mm²

Content :

50pc(s)

Rated current In :

16

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Type :

Disconnect Block

Wire Gauge or Range - AWG :

12-28 AWG

AWG (min.) :

28

Nominal voltage :

400V

Contamination level :

3

Color :

Gray

No. of rows :

1

Manufacturer part # :

280-874

Product Status :

Active

Height :

28.50mm

Mounting Type :

DIN Rail

Configuration :

L

Stripping Length :

8mm ~ 9mm
