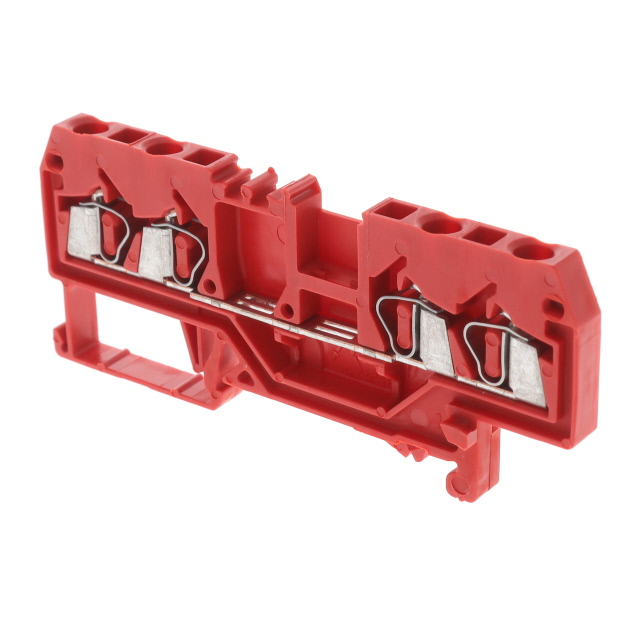

280-830

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Number of Circuits :

1

Package :

Bulk

Material Flammability Rating :

-

Base Product Number :

280

Material - Insulation :

Polyamide (PA66), Nylon 6/6

No. of rows :

1

Connectable conductor cross section multi-wired :

0.08 - 2.5

Note :

n/a

Pins per row :

4

Cross section (flexible) (min.) :

0.08mm²

Dim :

(W x H) 5 mm x 28 mm

Product Status :

Active

Min. stripping length :

8mm

Number of Positions/Contacts :

3

Number of Contacts :

4(POS)

Cross section (flexible) (max.) :

2.50mm²

Stripping Length :

8mm ~ 9mm

Cross section (inflexible) (min.) :

0.08mm²

Shell Size :

-

Inflammability class of insulation material according to with UL94 :

V0

Disconnect Type :

-

Fuse Type :

-

Wire Gauge or Range - AWG :

12-28 AWG

AWG (min.) :

28

Connection :

Pull spring

Packaging :

Box

Gender :

F

Nominal voltage :

800V

Voltage - UL :

-

Product Length (mm) :

5(mm)

Housing Material :

Polyamide 6/6

Mounting Style :

T DIN RAIL

Length :

75

Housing Color :

Red

Termination Style :

Push In, Spring

Rad Hardened :

No

Product Depth (mm) :

75(mm)

Current Rating (Max) :

20(A)

Shell Material :

PA

Manufacturer part # :

280-830

Cross section (inflexible) (max.) :

2.50mm²

Approvals :

CSA, UR

Mounting Type :

DIN Rail

Depth :

28

AWG max. :

14

Content :

100pc(s)

Rated Voltage :

800V

Series :

WINSTA MIDI

Number of Levels :

1

Rated Current :

20A

Features :

-

Number of Positions :

4

Height :

28mm

Product Height (mm) :

28(mm)

Contamination level :

3

Wire Gauge :

12-28(AWG)

Nominal current :

20A

Stripping length (max.) :

9mm

Nominal current - rounded value :

20A

Current - IEC :

20 A

Industrial packaging :

yes

Wire Gauge or Range - mm² :

0.08-2.5mm²

RoHS :

yes

Connectable conductor cross section solid-core :

0.08 - 2.5

Width :

5mm

Manufacturer :

Wago

Clamp width :

5mm

Rated current In :

20

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Operating Voltage (Max) :

800V

Terminal - Width :

5.0mm

Type :

Standard Block

Voltage - IEC :

800V

Number of Contact Rows :

4

Color :

Red
