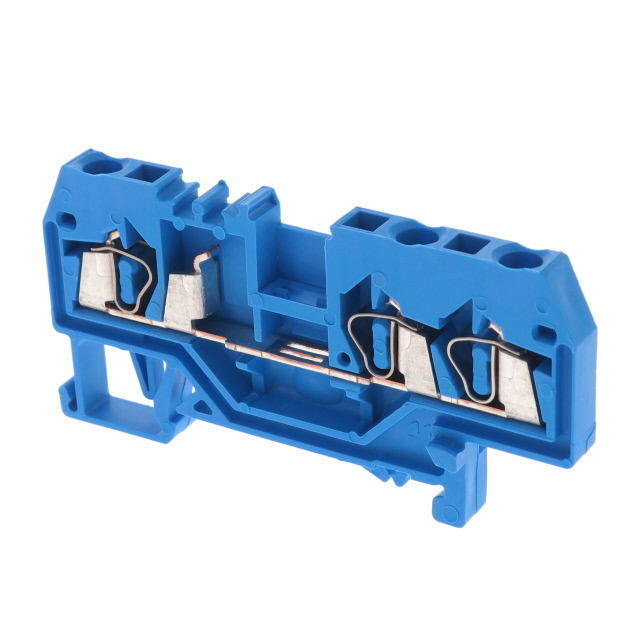

280-684

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Features :

Complies with ATEX Ex I standards

Rated current In :

24

Number of Positions :

3

Product Height (mm) :

28(mm)

Series :

280

Note :

n/a

Cross section (flexible) (max.) :

2.50mm²

Connectable conductor cross section multi-wired :

0.08 - 2.5

Rad Hardened :

No

Mounting Style :

Din-Rail

Package :

Bulk

Width :

5mm

Cross section (flexible) (min.) :

0.08mm²

Voltage - UL :

-

Color :

Blue

Number of Positions/Contacts :

5

Material Flammability Rating :

-

Nominal current - rounded value :

24A

No. of rows :

1

Cross section (inflexible) (min.) :

0.08mm²

Number of Ways :

3

Termination Style :

Push In, Spring

Configuration :

N

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Product Depth (mm) :

64(mm)

Current - IEC :

24 A

Wire Gauge :

12-28(AWG)

Voltage - IEC :

800V

Stripping length (max.) :

9mm

Cross section (inflexible) (max.) :

2.50mm²

Product Status :

Active

Connection :

Pull spring

Height :

28mm

Number of Levels :

1

Rated Current :

24A

Number of Contact Rows :

3

Product Length (mm) :

5(mm)

Current Rating :

24A

AWG (min.) :

28

Clamp width :

5mm

Content :

100pc(s)

Termination Method :

Push In

Base Product Number :

280

RoHS :

yes

Nominal voltage :

800V

Gender :

Female/Male

Shell Material :

PA

Fuse Type :

-

Housing Color :

Blue

Manufacturer part # :

280-684

Inflammability class of insulation material according to with UL94 :

V0

Terminal - Width :

5.0mm

Shell Size :

-

Manufacturer :

Wago

Rated Voltage :

800V

Type :

Standard Block

Wire Size :

28 → 12 AWG

Min. stripping length :

8mm

Disconnect Type :

-

Dim :

(W x H) 5 mm x 28 mm

Number of Contacts :

3(POS)

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Number of Circuits :

1

Wire Gauge or Range - AWG :

12-28 AWG

Pins per row :

3

Connectable conductor cross section solid-core :

0.08 - 2.5

Depth :

28

Stripping Length :

8mm ~ 9mm

Contamination level :

3

Packaging :

Box

AWG max. :

14

Contact Pitch (mm) :

Not Required(mm)

Industrial packaging :

yes

Mounting Type :

DIN Rail

Nominal current :

24A

Length :

64

Wire Gauge or Range - mm² :

0.08-2.5mm²

Approvals :

CSA, UR
