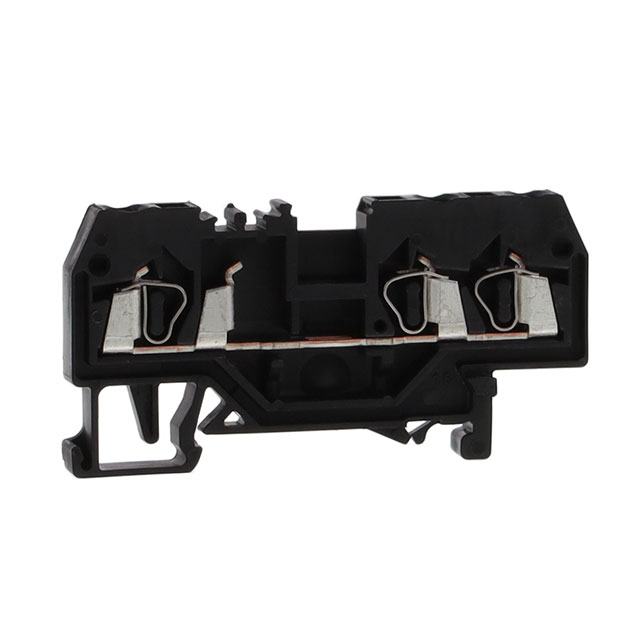

280-671

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Pins per row :

3

Number of Pins :

3

Contamination level :

3

Stripping Length :

8mm ~ 9mm

Height :

28mm

Number of Positions/Contacts :

5

Clamp width :

5mm

Cross section (inflexible) (min.) :

0.08mm²

Manufacturer :

Wago

Number of Positions :

3

Shell Size :

-

AWG (min.) :

28

Product Status :

Active

Wire Gauge or Range - AWG :

12-28 AWG

RoHS :

yes

Connection :

Pull spring

Disconnect Type :

-

Manufacturer part # :

280-671

Content :

100pc(s)

Rad Hardened :

No

Package :

Bulk

Mounting Style :

Din-Rail

Connectable conductor cross section multi-wired :

0.08 - 2.5

Features :

-

Dim :

(W x H) 5 mm x 28 mm

Cross section (inflexible) (max.) :

2.50mm²

Industrial packaging :

yes

Rated current In :

24

Voltage - IEC :

800V

Material Flammability Rating :

-

Type :

Standard Block

Inflammability class of insulation material according to with UL94 :

V0

Number of Circuits :

1

Gender :

Female/Male

No. of rows :

1

Fuse Type :

-

Voltage - UL :

-

Rated Current :

24A

Current Rating (Max) :

24(A)

Packaging :

Box

Stripping length (max.) :

9mm

Number of Contacts :

3(POS)

Cross section (flexible) (max.) :

2.50mm²

Nominal voltage :

800V

Nominal current :

24A

Number of Rows :

1

Approvals :

CSA, UR

Current Rating :

24 A

Color :

Black

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Wire Gauge or Range - mm² :

0.08-2.5mm²

Shell Material :

PA

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Note :

n/a

Terminal - Width :

5.0mm

Nominal current - rounded value :

24A

Series :

WINSTA MIDI

Current - IEC :

24 A

Base Product Number :

280

Width :

5mm

Length :

64

Depth :

28

Flammability Rating :

UL94 V-0

Number of Levels :

1

Min. stripping length :

8mm

AWG max. :

14

Cross section (flexible) (min.) :

0.08mm²

Connectable conductor cross section solid-core :

0.08 - 2.5

Termination Style :

Push In, Spring

Mounting Type :

DIN Rail

Rated Voltage :

800V
