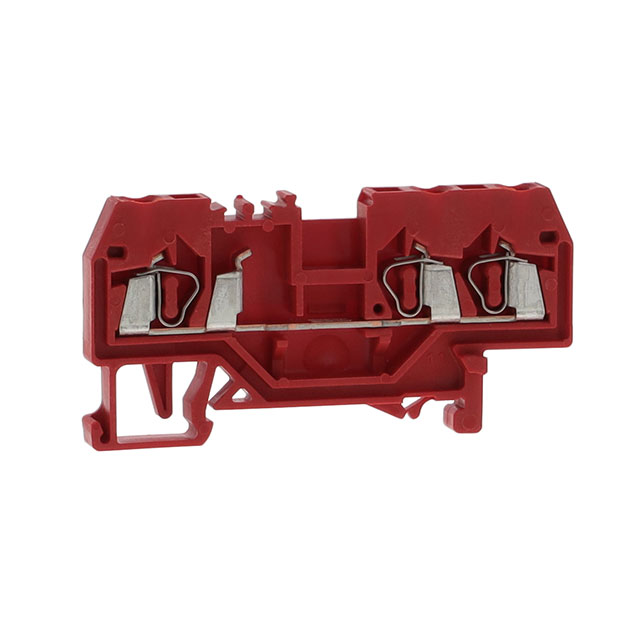

280-653

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Material Flammability Rating :

-

Mounting Type :

DIN Rail

Nominal current - rounded value :

24A

Min. stripping length :

8mm

Type :

Terminal Block

Voltage - IEC :

800V

Contamination level :

3

AWG max. :

14

Approvals :

CSA, UR

Depth :

28

Connectable conductor cross section multi-wired :

0.08 - 2.5

Width :

5mm

Series :

WINSTA MIDI

HTS :

8536.90.40.00

Stripping length (max.) :

9mm

Stripping Length :

8mm ~ 9mm

Wire Gauge or Range - AWG :

12-28 AWG

Mounting :

DIN Rail

Cross section (flexible) (max.) :

2.50mm²

Rated current In :

24

Termination Style :

Push In, Spring

EU RoHS :

Compliant

Automotive :

No

Number of Positions :

3

Number of Contacts :

3

Cross section (flexible) (min.) :

0.08mm²

Cross section (inflexible) (min.) :

0.08mm²

Rated Current :

24A

Industrial packaging :

yes

Pins per row :

3

Content :

100pc(s)

Disconnect Type :

-

PPAP :

No

Base Product Number :

280

Number of Positions/Contacts :

5

Shell Material :

PA

Cross section (inflexible) (max.) :

2.50mm²

Inflammability class of insulation material according to with UL94 :

V0

Shell Size :

-

Clamp width :

5mm

Maximum Current Rating (A) :

24

Fuse Type :

-

AWG (min.) :

28

Note :

n/a

Rated Voltage :

800V

ECCN (US) :

EAR99

Manufacturer part # :

280-653

Packaging :

Box

No. of rows :

1

Manufacturer :

Wago

Connectable conductor cross section solid-core :

0.08 - 2.5

Wire Gauge or Range - mm² :

0.08-2.5mm²

Connection :

Pull spring

Height :

28mm

Nominal voltage :

800V

Number of Circuits :

1

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Features :

-

Nominal current :

24A

Dim :

(W x H) 5 mm x 28 mm

Product Status :

Active

Voltage - UL :

-

Length :

64

Package :

Bulk

Number of Levels :

1

Gender :

Male

RoHS :

yes

Current - IEC :

24 A

Terminal - Width :

5.0mm

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Color :

Red
