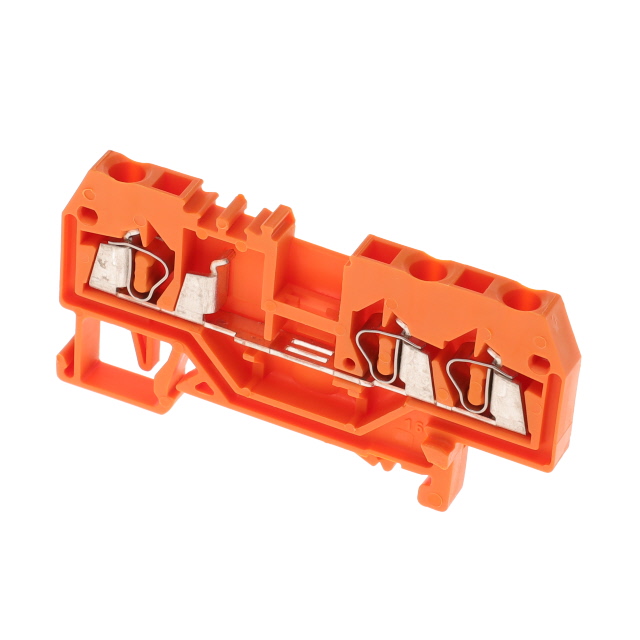

280-650

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Wire Gauge :

12-28(AWG)

Cross section (flexible) (max.) :

2.50mm²

Weight :

7.573g

Number of Contacts :

3

Dim :

(W x H) 5 mm x 28 mm

Nominal current :

24A

Cross section (inflexible) (min.) :

0.08mm²

Maximum Current Rating (A) :

24

Wire Gauge or Range - mm² :

0.08-2.5mm²

Current Rating (Max) :

24(A)

Clamp width :

5mm

Note :

n/a

Product Status :

Active

Rad Hardened :

No

Manufacturer :

Wago

Height :

28mm

Current - IEC :

24 A

Nominal current - rounded value :

24A

Connection :

Pull spring

Operating Voltage (Max) :

800V

Number of Positions/Contacts :

5

Stripping Length :

8mm ~ 9mm

Stripping length (max.) :

9mm

HTS :

8536.90.40.00

Contact Pitch (mm) :

Not Required(mm)

Packaging :

Box

Number of Levels :

1

Number of Circuits :

1

Series :

WINSTA MIDI

Pins per row :

3

Min. stripping length :

8mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

RoHS :

yes

Number of Contact Rows :

3

Mounting Type :

DIN Rail

Wire Gauge or Range - AWG :

12-28 AWG

No. of rows :

1

Number of Rows :

3

Features :

-

Manufacturer part # :

280-650

Mounting :

T DIN RAIL

Housing Color :

Orange

Shell Material :

PA

Material Flammability Rating :

UL94 V-0

Shell Size :

-

EU RoHS :

Compliant

Content :

100pc(s)

Cross section (flexible) (min.) :

0.08mm²

Type :

Terminal Block

Terminal - Width :

5.0mm

Mounting Style :

T DIN RAIL

AWG max. :

14

Automotive :

No

Voltage - IEC :

800V

Termination Style :

Push In, Spring

Industrial packaging :

yes

Disconnect Type :

-

PPAP :

No

Approvals :

CSA, UR

Nominal voltage :

800V

Width :

5mm

Package :

Box

ECCN (US) :

EAR99

Cross section (inflexible) (max.) :

2.50mm²

AWG (min.) :

28

Gender :

F

Color :

Orange

Fuse Type :

-

Maximum Voltage Rating :

800V

Voltage - UL :

-

Number of Positions :

3
