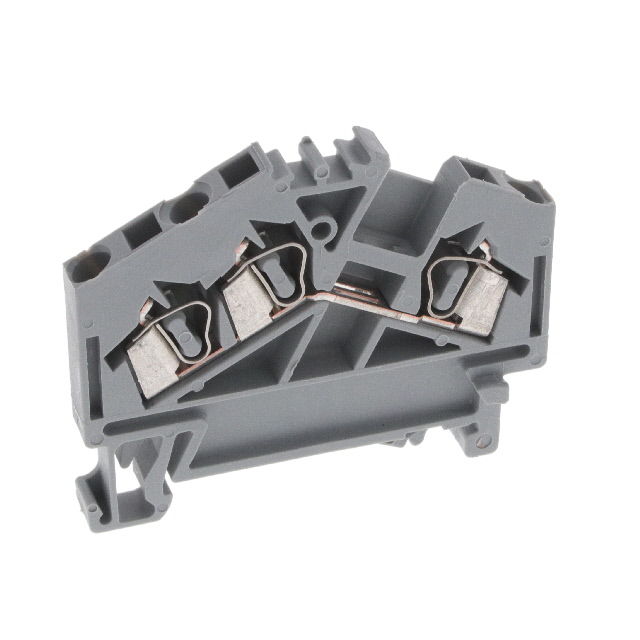

280-641

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Shell Size :

-

Series :

280

Min. stripping length :

8mm

Fuse Type :

-

Type :

Standard Block

Housing Color :

Gray

Additional Feature :

Cage Clamp

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Note :

n/a

Content :

100pc(s)

Cross section (inflexible) (min.) :

0.08mm²

Number of Positions :

3

AWG (min.) :

28

Wire Gauge or Range - AWG :

12-28 AWG

Packaging :

Box

Manufacturer :

Wago

Voltage - UL :

-

Mounting Style :

T DIN RAIL

Number of Positions/Contacts :

5

Manufacturer part # :

280-641

Terminal - Width :

5.0mm

Cross section (inflexible) (max.) :

2.50mm²

Material Flammability Rating :

-

Product Status :

Active

Reach Compliance Code :

Compliant

Number of Contacts :

3(POS)

Current - IEC :

24 A

Number of Levels :

Single

Number of Circuits :

1

Wire Cross Section :

2.5 mm2

Features :

-

Pins per row :

3

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Termination Method :

Clamp

Nominal current :

24A

Mounting Type :

DIN Rail

Package :

Bulk

Dim :

(W x H) 5 mm x 36.50 mm

Color :

Gray

No. of rows :

1

Number of Decks :

1

Voltage - IEC :

800V

Contamination level :

3

Cross section (flexible) (max.) :

2.50mm²

Pitch :

5mm

Rated Voltage :

800V

RoHS :

yes

Gender :

F

Disconnect Type :

-

Product Height (mm) :

36.5(mm)

Configuration :

L

Shell Material :

PA

Number of Contact Rows :

3

Current Rating :

24A

Nominal current - rounded value :

24A

Voltage Rating :

600 V

Rad Hardened :

No

Safety Approval :

UL; CSA

Approvals :

CSA, UR

Connection :

Pull spring

Fastening Method :

SPRING LOADED

Wire Gauge :

12-28(AWG)

Number of Ways :

3

Nominal voltage :

800V

Termination Style :

Push In, Spring

AWG max. :

14

Product Depth (mm) :

5(mm)

ECCN Code :

EAR99

Base Product Number :

280

Rated Current :

24A

Number of Rows :

3

Contact Pitch (mm) :

Not Required(mm)

Stripping length (max.) :

9mm

Product Length (mm) :

50.5(mm)

Cross section (flexible) (min.) :

0.08mm²

Wire Gauge or Range - mm² :

0.08-2.5mm²

Clamp width :

5mm

Width :

5mm

Industrial packaging :

yes

HTS Code :

8536.69.40.40

Height :

36.50mm

Stripping Length :

8mm ~ 9mm
