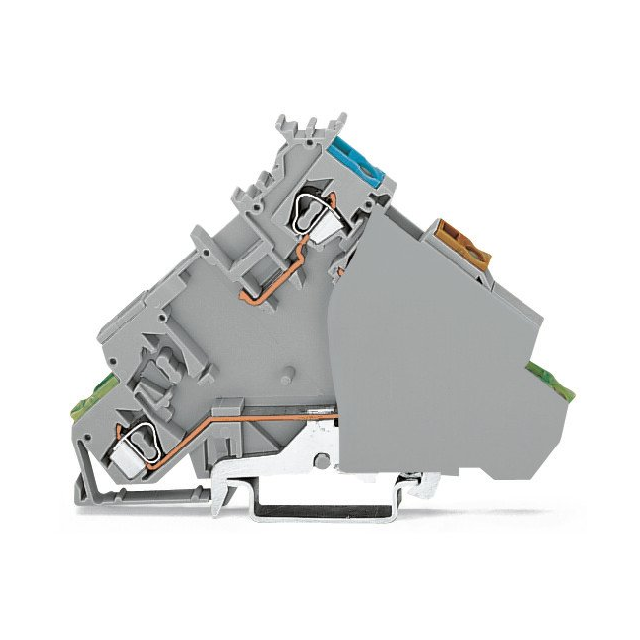

280-577

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Maximum Operating Temperature (°C) :

105

Termination Method :

Spring Clamp

SVHC Exceeds Threshold :

yes

Shell Material :

PA

Voltage - IEC :

400V

EU RoHS :

Compliant with Exemption

Package :

Box

Mounting Type :

DIN Rail

Nominal voltage :

400V

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Note :

n/a

Housing Color :

Gray

Configuration :

L

Content :

20pc(s)

Fuse Type :

-

Series :

WINSTA MIDI

Length :

90.5

Voltage - UL :

-

PPAP :

No

Manufacturer :

Wago

Industrial packaging :

yes

Disconnect Type :

-

Product Status :

Active

Number of Contacts :

4

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Rated current In :

20

Shell Size :

-

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Contamination level :

3

Maximum Current Rating (A) :

20

Stripping length (max.) :

9mm

AWG max. :

14

Cross section (flexible) (max.) :

2.50mm²

Cross section (flexible) (min.) :

0.08mm²

HTS :

8536.90.40.00

Gender :

Male

ECCN (US) :

EAR99

Type :

Sensor Terminal Block

Minimum Operating Temperature (°C) :

-60

Maximum Voltage Rating :

400V

Connectable conductor cross section multi-wired :

0.08 - 2.5

Material Flammability Rating :

UL94 V-0

Features :

+ PG connector

Number of Rows :

4

AWG (min.) :

28

Depth :

63.5

Connection :

Pull spring

Color :

Gray

Height :

63.50mm

Number of Circuits :

1

Automotive :

No

Wire Gauge or Range - mm² :

0.08-2.5mm²

Nominal current - rounded value :

20A

Number of Levels :

3; 1 Grounded

Number of Positions :

4

Nominal current :

20A

Current - IEC :

20 A

Stripping Length :

8mm ~ 9mm

Cross section (inflexible) (max.) :

2.50mm²

Dim :

(W x H) 6 mm x 63.50 mm

Mounting :

DIN Rail

Manufacturer part # :

280-577

Cross section (inflexible) (min.) :

0.08mm²

No. of rows :

3

Packaging :

Box

Width :

6mm

Number of Positions/Contacts :

3

Terminal - Width :

6.0mm

Min. stripping length :

8mm

Clamp width :

6mm

Inflammability class of insulation material according to with UL94 :

V0

Wire Gauge or Range - AWG :

12-28 AWG

RoHS :

yes

Connectable conductor cross section solid-core :

0.08 - 2.5

Approvals :

CSA, UR

Termination Style :

Push In, Spring

SVHC :

yes
