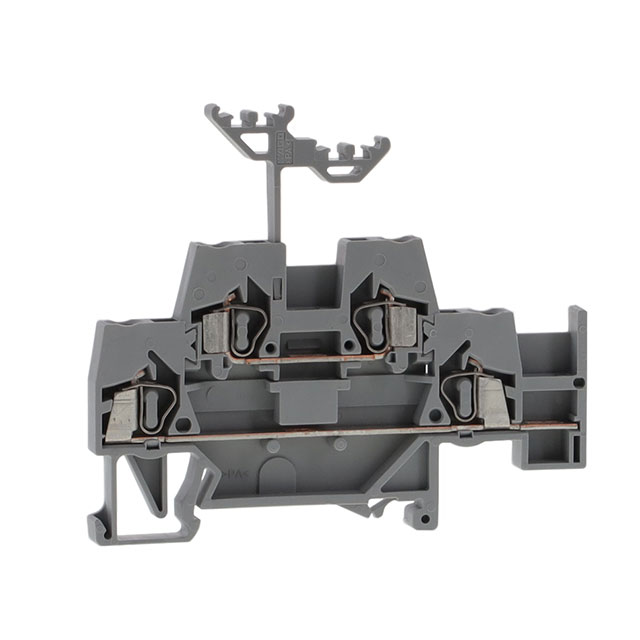

280-520

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

REACH SVHC :

Unknown

Mating Post Length :

6.604mm

Approval Agency :

CSA

Lead Length :

3.5052mm

Overall Contact Length :

0.563 14.30mm

Contact Type :

Male Pin

Number of Positions :

12

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material Flammability Rating :

UL94 V-0

DIN Conformance :

No

Gender :

Male

Insulation Height :

0.496 12.60mm

Voltage - Rated DC :

250V

Length :

33.1mm

Contact Finish Thickness - Mating :

118.1μin 3.00μm

Working Voltage :

250V

Termination :

Solder

Fastening Type :

Detent Lock

Flammability Rating :

UL94 V-0

Operating Temperature :

-40°C~80°C

Factory Lead Time :

33 Weeks

RoHS Status :

RoHS Compliant

UL Flammability Code :

94V-0

Mixed Contacts :

No

Contact Finish - Mating :

Tin

Shrouding :

Shrouded - 3 Wall

Option :

GENERAL PURPOSE

Packaging :

Bulk

ELV :

Compliant

Style :

Board to Board or Cable

Orientation :

Vertical

Contact Shape :

Square

Lead Free :

Lead Free

Connector Type :

Header

Contact Length - Mating :

0.260 6.60mm

Number of Poles :

12

High Temperature Housing :

No

Lead Pitch :

2.54mm

Number of Positions Loaded :

All

Voltage - Rated AC :

250V

Depth :

5mm

Contact Finish Thickness - Post :

118.1μin 3.00μm

Row Spacing :

2.54 mm

MIL Conformance :

No

Number of Rows :

1

Shrouded End Dimension :

1.65 mm

Housing Color :

Black

Contact Length - Post :

0.138 3.50mm

Published :

2001

Contact Material :

Brass

Plating Thickness :

3.5μm

Mount :

Through Hole

Mounting Type :

Through Hole

IEC Conformance :

No

Filter Feature :

No

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Insulation Material :

Thermoplastic

Series :

AMPMODU Mod II

Pitch - Mating :

0.100 2.54mm

Current Rating :

3A

Contact Current Rating :

3A

Pbfree Code :

yes
