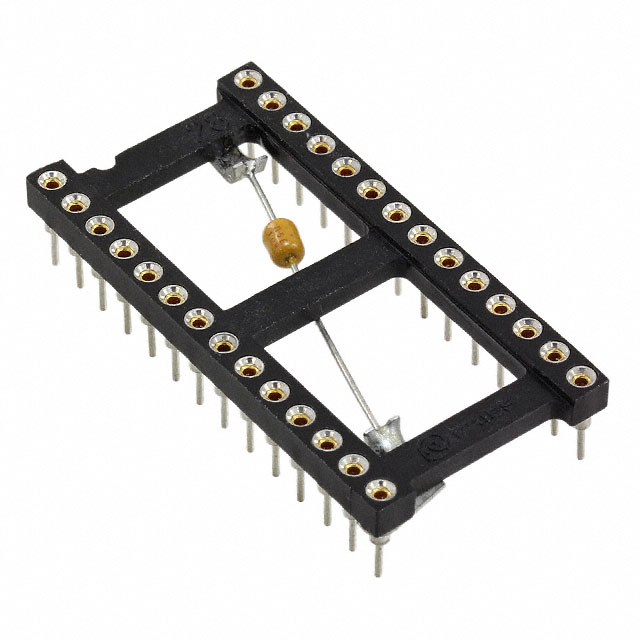

28-6518-101
Or copy the link below:
- Mfr.Part #
- 28-6518-101
- Manufacturer
- Aries Electronics, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN IC DIP SOCKET 28POS GOLD
- Stock
- 17,264
- In Stock ：
- 17,264
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Aries Electronics, Inc.
- Product Category :
- IC Sockets
- Mounting Type :
- Through Hole
- Packaging :
- Bulk
- Lead Free :
- Lead Free
- Body Length or Diameter :
- 1.4 inch
- Number of Pins :
- 28
- ECCN Code :
- EAR99
- Contact Finish - Post :
- Tin
- Additional Feature :
- STANDARD: UL 94V-0
- Contact Material - Mating :
- BERYLLIUM COPPER
- Number of Positions or Pins (Grid) :
- 28 (2 x 14)
- Contact Finish - Mating :
- Gold
- Termination Post Length :
- 0.125 3.18mm
- Pitch - Mating :
- 0.100 2.54mm
- Series :
- 518
- Published :
- 2013
- Mount :
- Through Hole
- Factory Lead Time :
- 5 Weeks
- Contact Style :
- RND PIN-SKT
- Contact Material - Post :
- Brass
- Feature :
- Open Frame
- Lead Length :
- 3.175mm
- Flammability Rating :
- UL94 V-0
- Lead Pitch :
- 2.54mm
- Housing Material :
- Polyamide (PA46), Nylon 4/6, Glass Filled
- Pbfree Code :
- yes
- JESD-609 Code :
- e3
- RoHS Status :
- ROHS3 Compliant
- Pitch - Post :
- 0.100 2.54mm
- Body Breadth :
- 0.7 inch
- Termination :
- Solder
- Current Rating :
- 3A
- Type :
- DIP, 0.6 (15.24mm) Row Spacing
- Contact Finish Thickness - Post :
- 200.0μin 5.08μm
- PCB Contact Row Spacing :
- 0.6 mm
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- Contact Plating :
- Gold, Tin
- PCB Contact Pattern :
- RECTANGULAR
- Material Flammability Rating :
- UL94 V-0
- Mating Contact Pitch :
- 0.1 inch
- Body Depth :
- 0.162 inch
- Number of Contacts :
- 28
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 28-6518-101
28-6518-101 datasheet pdf and Sockets for ICs, Transistors product details from Aries Electronics stock available at Xinshop
