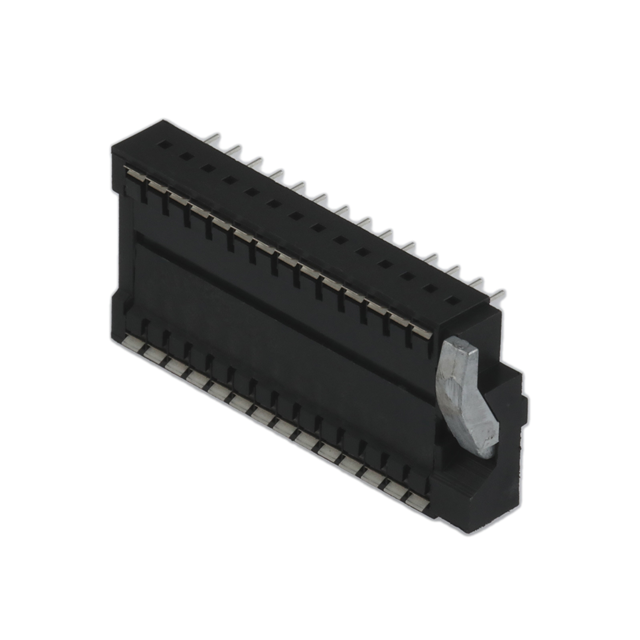

28-526-10
Or copy the link below:
- Mfr.Part #
- 28-526-10
- Manufacturer
- Aries Electronics, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN IC DIP SOCKET ZIF 28POS TIN
- Stock
- 594
- In Stock ：
- 594
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Aries Electronics, Inc.
- Product Category :
- IC Sockets
- Length :
- 41.9mm
- Number of Rows :
- 2
- Feature :
- Closed Frame
- Contact Material - Post :
- BERYLLIUM COPPER
- JESD-609 Code :
- e3
- ECCN Code :
- EAR99
- Published :
- 2007
- Pitch - Mating :
- 0.100 2.54mm
- Gender :
- FEMALE
- Mount :
- Through Hole
- Housing Material :
- Polyamide (PA46), Nylon 4/6, Glass Filled
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Pitch :
- 2.54mm
- Connector Type :
- DIP
- Operating Temperature :
- -55°C~105°C
- Pbfree Code :
- yes
- Lead Free :
- Lead Free
- Type :
- DIP, ZIF (ZIP)
- Material Flammability Rating :
- UL94 V-0
- Contact Finish - Mating :
- Tin
- Packaging :
- Bulk
- Series :
- Lo-PRO®file, 526
- Height :
- 8.38mm
- Pitch - Post :
- 0.100 2.54mm
- Insulation Material :
- Nylon
- Contact Material - Mating :
- BERYLLIUM COPPER
- Current Rating (Amps) :
- 3A
- Row Spacing :
- 15.24 mm
- Contact Resistance :
- 10MOhm
- Termination Post Length :
- 0.105 2.67mm
- Orientation :
- Straight
- Depth :
- 19.05mm
- Contact Material :
- Copper
- Mounting Type :
- Through Hole
- Contact Finish Thickness - Post :
- 10.0μin 0.25μm
- Termination :
- Solder
- RoHS Status :
- ROHS3 Compliant
- Number of Positions or Pins (Grid) :
- 28 (2 x 14)
- Factory Lead Time :
- 6 Weeks
- REACH SVHC :
- No SVHC
- Number of Contacts :
- 28
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- Number of Positions :
- 28
- Width :
- 19.1mm
- Additional Feature :
- STANDARD: UL 94V-0, LOW PROFILE
- Datasheets
- 28-526-10
