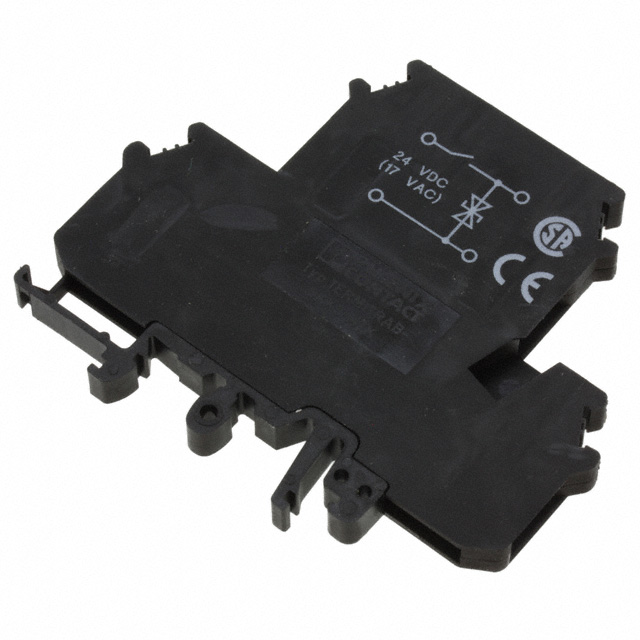

2795960
Or copy the link below:
- Mfr.Part #
- 2795960
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- CONN TERM BLK DISCONN 12-24AWG
- Stock
- 46,783
- In Stock ：
- 46,783
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Din Rail, Channel
- Number of Levels :
- 2; Connected
- Type :
- Disconnect, Feed Through
- Factory Lead Time :
- 5 Weeks
- Mount :
- DIN Rail
- Current Rating :
- 12A
- RoHS Status :
- RoHS Compliant
- Termination :
- Screw
- Stripping Length :
- 8mm
- Depth :
- 68mm
- Wire Gauge or Range - mm² :
- 0.2-4mm2
- Material - Insulation :
- Polyamide (PA), Nylon
- Max Operating Temperature :
- 85°C
- Wire Gauge (Max) :
- 24 AWG
- Disconnect Type :
- Switch, Knife
- Published :
- 2011
- Wire Gauge or Range - AWG :
- 12-24 AWG
- Color :
- Black
- Approval Agency :
- CSA, IEC
- Weight :
- 28.349523g
- Terminal Width :
- 6.2mm
- Connector Type :
- Screw
- Wire Gauge (Min) :
- 24 AWG
- Min Operating Temperature :
- -40°C
- Housing Material :
- Polyamide
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Width :
- 6.2mm
- Length :
- 80mm
- Ratings :
- IP20
- Flammability Rating :
- UL94 V-2
- Feature :
- Diode
- Termination Style :
- Screw
- Height :
- 68mm
- Material Flammability Rating :
- UL94 V-2
- Series :
- TERMITRAB UKK
- Voltage - Rated :
- 24V
- Number of Positions :
- 4
- Datasheets
- 2795960
2795960 Documents
2795960 datasheet pdf and Terminal Blocks - Din Rail, Channel product details from Phoenix Contact stock available at Xinshop
