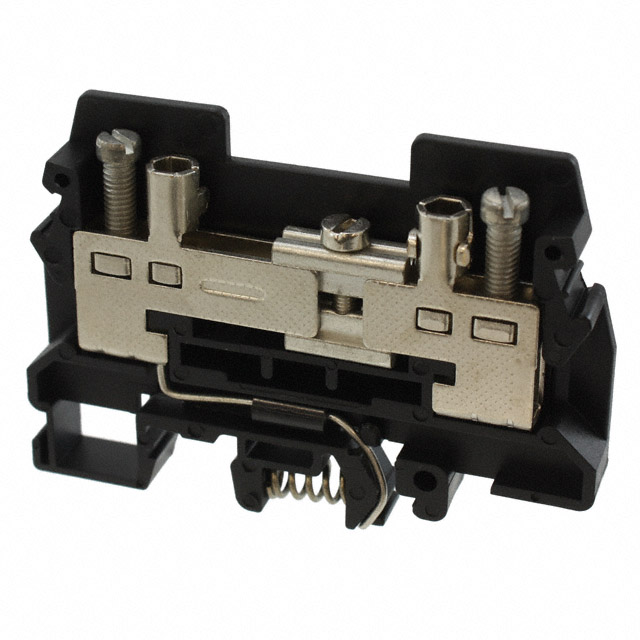

2788278

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Flammability Rating :

UL94 V-2

Width :

8.2mm

Wire Gauge (Min) :

8 AWG

Weight :

37.159988g

Reach Compliance Code :

Unknown

Series :

TERMITRAB URTK

Type :

Disconnect

Feature :

Diode

Factory Lead Time :

6 Weeks

Termination Style :

Screw

Number of Rows :

1

Number of Decks :

1

Color :

Black

Number of Positions :

2

HTS Code :

8536.69.40.40

Max Operating Temperature :

85°C

Material Flammability Rating :

UL94 V-2

Rated Current :

57A

Number of Ways :

1

Number of Levels :

1; Grounded

Wire Gauge or Range - mm² :

0.5-6mm2

RoHS Status :

RoHS Compliant

Housing Material :

Polyamide

Pbfree Code :

yes

ECCN Code :

EAR99

Height :

51.5mm

Material - Insulation :

Polyamide (PA), Nylon

Published :

2011

Length :

72mm

Safety Approval :

UL

Wire Gauge (Max) :

20 AWG

Voltage - Rated :

24V

Wire Gauge or Range - AWG :

8-20 AWG

Disconnect Type :

Switch, Slide

Stripping Length :

13mm

Min Operating Temperature :

-40°C
