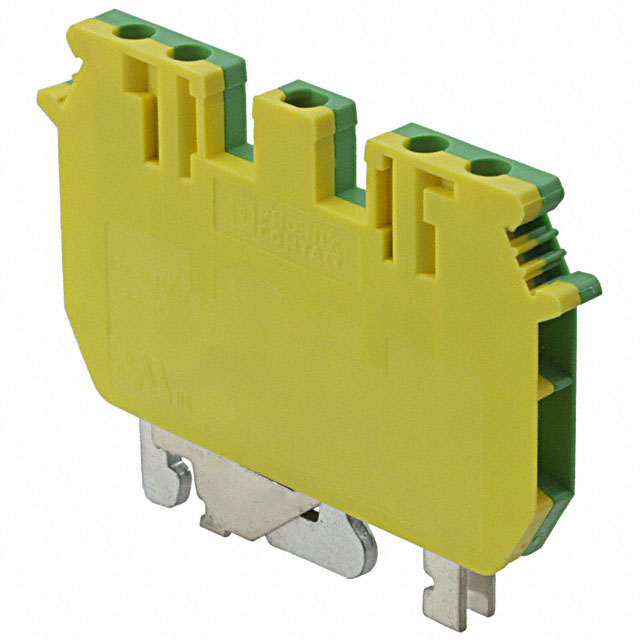

2775456

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Number of Rows :

2

Housing Color :

Green

Weight :

24.759992g

Length :

63.5mm

Type :

Ground, Earth

Lead Free :

Lead Free

Termination Style :

Screw

Mount :

Through Hole

Reach Compliance Code :

not_compliant

Number of Positions :

4

Color :

Green, Yellow

Wire Gauge or Range - mm² :

0.2-4mm2

Safety Approval :

UL

Stripping Length :

8mm

RoHS Status :

RoHS Compliant

Factory Lead Time :

4 Weeks

Material Flammability Rating :

UL94 V-2

Pbfree Code :

yes

Series :

CLIPLINE UDK

Orientation :

Straight

Voltage - Rated :

6kV

Number of Ways :

4

Wire Gauge (Min) :

12 AWG

Published :

2003

Material - Insulation :

Polyamide (PA), Nylon

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

Housing Material :

Nylon

Height :

54.5mm

Wire Gauge or Range - AWG :

12-30 AWG

Number of Decks :

2

Wire Gauge (Max) :

30 AWG

Flammability Rating :

UL94 V-2

Number of Contacts :

5

Number of Levels :

1

Wire/Cable Gauge :

12 AWG

Width :

5.2mm
