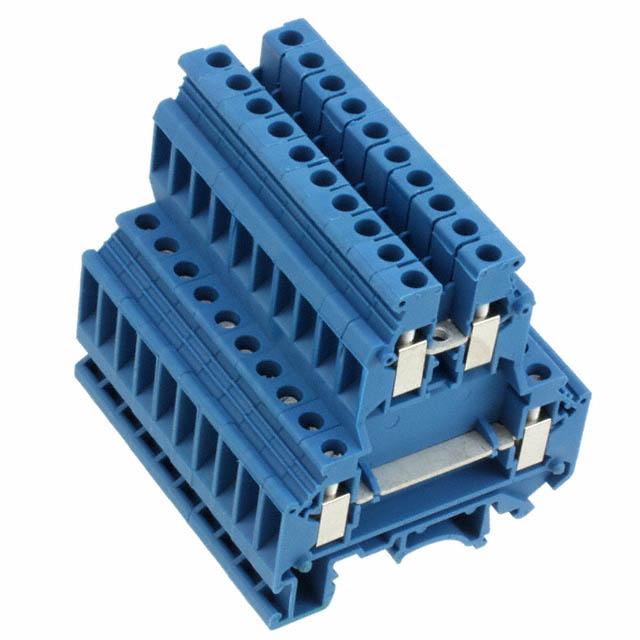

2774091

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Type :

Feed Through

Number of Positions :

4

Wire Gauge (Min) :

10 AWG

Flammability Rating :

UL94 V-0

Voltage - IEC :

500V

Material - Insulation :

Polyamide (PA), Nylon

Number of Circuits :

1

Orientation :

Straight

Housing Material :

Nylon

Voltage - Rated :

500V

Wire Gauge or Range - AWG :

10-26 AWG

ECCN Code :

EAR99

Stripping Length :

8mm

Wire Gauge or Range - mm² :

0.2-4mm2

Length :

56mm

RoHS Status :

RoHS Compliant

Termination Style :

Screw

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

Current :

30A

Wire Gauge (Max) :

26 AWG

Published :

2003

Mount :

Through Hole

Height :

67mm

Weight :

15.380013g

Number of Ways :

4

Width :

6.2mm

Approval Agency :

CB, CSA, KEMA, UL

Lead Free :

Lead Free

Housing Color :

Grey

Number of Decks :

2

Number of Rows :

1

Max Current Rating :

32A

Series :

CLIPLINE UKK

Wire/Cable Gauge :

12 AWG

Material Flammability Rating :

UL94 V-0

Factory Lead Time :

6 Weeks

Number of Levels :

2

Voltage :

600V

Color :

Blue

Safety Approval :

UL

Current Rating :

32A
