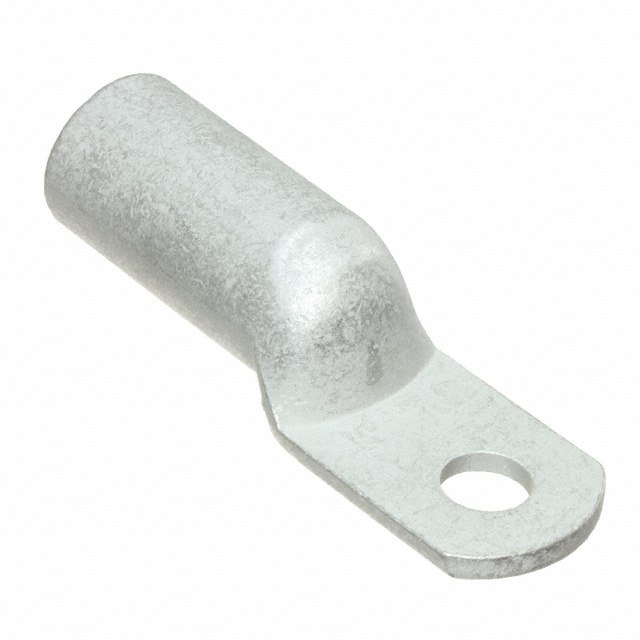

277151-7
Or copy the link below:
- Mfr.Part #
- 277151-7
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN RING FLAT 1/0AL 2CU #5/16
- Stock
- 25
- In Stock ：
- 25
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Ring Connectors
- Width - Outer Edges :
- 0.812 20.62mm
- Depth :
- 20.62mm
- Insulation Diameter :
- 0.425 ~ 0.470 (10.79mm ~ 11.94mm)
- Contact Plating :
- Tin
- Wire/Cable Diameter :
- 11.94 mm
- Contact Material :
- Copper
- Length :
- 63.75mm
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Terminal and Terminal Block Type :
- RING TERMINAL
- Lead Free :
- Not Applicable
- HTS Code :
- 8536.90.40.00
- Wire Gauge (Min) :
- 2 AWG
- Stud Diameter :
- 8.33 mm
- Thickness :
- 0.100 2.54mm
- Mounting Type :
- Free Hanging (In-Line)
- RoHS Status :
- RoHS Compliant
- Number of Holes :
- 1
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Stud Size :
- M8
- Length - Overall :
- 2.510 63.75mm
- Material :
- Brass
- Published :
- 2008
- Wire Gauge :
- 1/0 AWG (Al), 2 AWG (Cu)
- Terminal Type :
- Flat Sided, Tubular (Battery Lugs)
- Factory Lead Time :
- 12 Weeks
- Gender :
- FEMALE
- Termination :
- Crimp
- Heavy Duty :
- No
- Sealable :
- yes
- Packaging :
- Bulk
- ELV :
- Compliant
- Pbfree Code :
- yes
- Tongue Thickness :
- 2.69mm
- Wire Gauge (Max) :
- 1 AWG
- Mount :
- Free Hanging
- ECCN Code :
- EAR99
- Series :
- Copalum
- Wire Cross Section :
- 55.5 mm2
- Insulation :
- Non-Insulated
- Stud/Tab Size :
- 5/16 Stud
- Datasheets
- 277151-7
