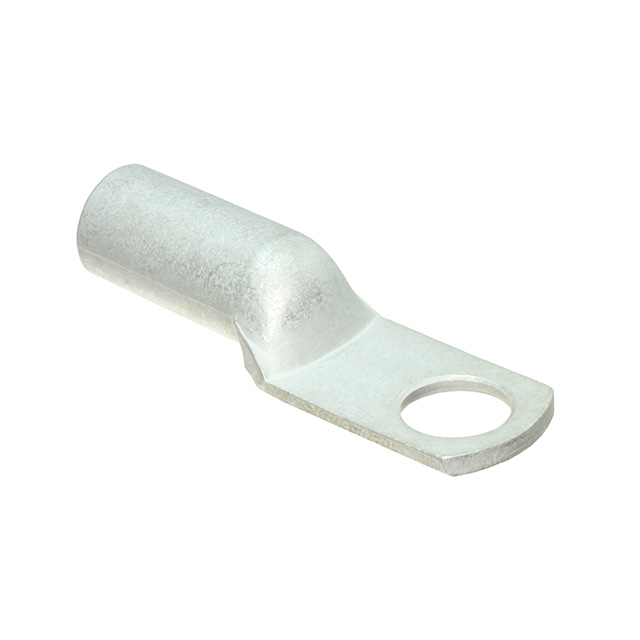

277149-4
Or copy the link below:
- Mfr.Part #
- 277149-4
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN RING FLAT 4AL 6CU #3/8
- Stock
- 49
- In Stock ：
- 49
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Ring Connectors
- Max Operating Temperature :
- 150°C
- RoHS Status :
- RoHS Compliant
- Published :
- 2005
- Number of Holes :
- 1
- Heavy Duty :
- No
- Length - Overall :
- 2.000 50.80mm
- Pbfree Code :
- yes
- HTS Code :
- 8536.90.40.00
- Lead Free :
- Not Applicable
- Tongue Thickness :
- 2.159mm
- Factory Lead Time :
- 4 Weeks
- Orientation :
- Straight
- Mount :
- Free Hanging
- Thickness :
- 0.082 2.08mm
- Wire/Cable Gauge :
- 6 AWG
- Sealable :
- yes
- Gender :
- FEMALE
- Min Operating Temperature :
- -55°C
- Stud/Tab Size :
- 3/8 Stud
- Packaging :
- Bulk
- Contact Plating :
- Tin
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Insulation :
- Non-Insulated
- Wire/Cable Diameter :
- 7.75 mm
- Stud Diameter :
- 9.906 mm
- Contact Material :
- Copper
- Insulation Diameter :
- 0.276 ~ 0.305 (7.01mm ~ 7.75mm)
- ELV :
- Compliant
- Terminal and Terminal Block Type :
- RING TERMINAL
- Wire Gauge :
- 4 AWG (Al), 6 AWG (Cu)
- Length :
- 50.8mm
- Diameter - Inside :
- 8.89 mm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Depth :
- 15.92mm
- Termination :
- Crimp
- ECCN Code :
- EAR99
- Series :
- Copalum
- Terminal Type :
- Flat Sided, Tubular (Battery Lugs)
- Width - Outer Edges :
- 0.627 15.92mm
- Mounting Type :
- Free Hanging (In-Line)
- Datasheets
- 277149-4
