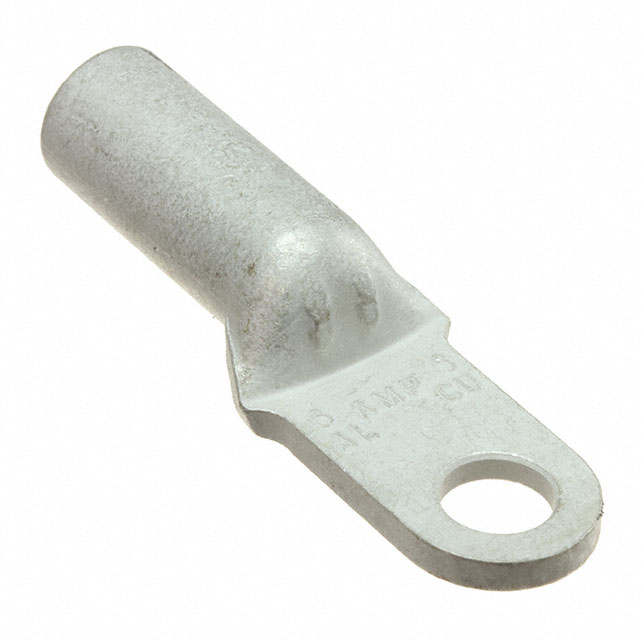

277148-7
Or copy the link below:
- Mfr.Part #
- 277148-7
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN RING FLAT 6AL 8CU #1/4
- Stock
- 35,590
- In Stock ：
- 35,590
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Ring Connectors
- Diameter - Inside :
- 7.112 mm
- Length :
- 46.74mm
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish :
- Tin
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Tongue Thickness :
- 2.26mm
- Mount :
- Free Hanging
- Min Operating Temperature :
- -55°C
- Published :
- 2005
- Width - Outer Edges :
- 0.627 15.92mm
- Stud Diameter :
- 6.731 mm
- Factory Lead Time :
- 4 Weeks
- Wire Gauge :
- 6 AWG (Al), 8 AWG (Cu)
- Insulation :
- Non-Insulated
- ECCN Code :
- EAR99
- Insulation Diameter :
- 0.225 ~ 0.250 (5.72mm ~ 6.35mm)
- Wire/Cable Diameter :
- 6.35 mm
- HTS Code :
- 8536.90.40.00
- Max Operating Temperature :
- 150°C
- Wire Gauge (Min) :
- 8 AWG
- Wire Gauge (Max) :
- 6 AWG
- Lead Free :
- Not Applicable
- Heavy Duty :
- No
- Length - Overall :
- 1.900 48.26mm
- Contact Material :
- Copper
- Packaging :
- Bulk
- Mounting Type :
- Free Hanging (In-Line)
- Terminal Type :
- Flat Sided, Tubular (Battery Lugs)
- Wire Cross Section :
- 8.8 mm2
- Terminal and Terminal Block Type :
- RING TERMINAL
- Terminal Gender :
- FEMALE
- Sealable :
- yes
- ELV :
- Compliant
- Stud/Tab Size :
- 1/4 Stud
- Thickness :
- 0.088 2.24mm
- Pbfree Code :
- yes
- Termination :
- Crimp
- Number of Holes :
- 1
- Series :
- Copalum
- Datasheets
- 277148-7
277148-7 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity Aerospace, Defense and Marine stock available at Xinshop
