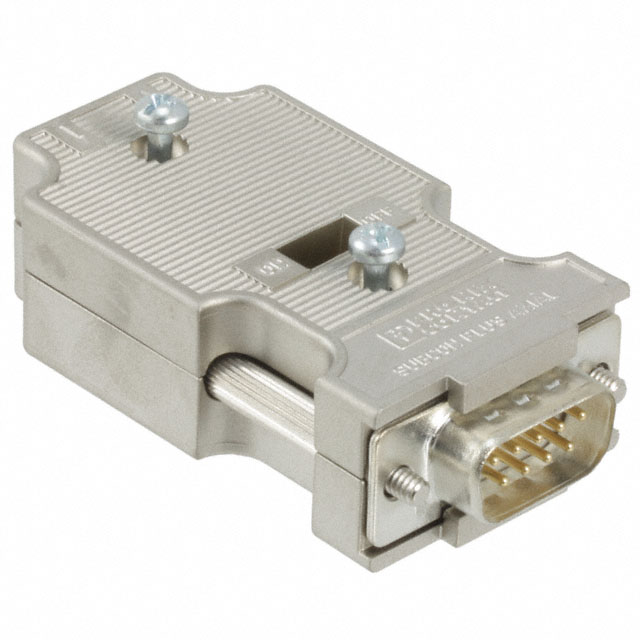

2744377

Manufacturer :

Phoenix Contact

Product Category :

D-Sub Connector Assemblies

Dielectric Material :

Acrylonitrile Butadiene Styrene (ABS), Metal Plated

Number of Positions :

9

Orientation :

Straight

Min Operating Temperature :

-20°C

Contact Type :

Signal

Connector Type :

Plug, Male Pins

Max Operating Temperature :

70°C

Feature :

Shielded

Connector Style :

D-Sub

Factory Lead Time :

4 Weeks

Operating Supply Voltage :

60V

Voltage - Rated :

60V

Number of Pins :

9

RoHS Status :

RoHS Compliant

Published :

2005

Operating Temperature :

-20°C~70°C

REACH SVHC :

Unknown

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material :

ABS

Length :

31.5mm

Package / Case :

Module

Mount :

Cable, Free Hanging

Packaging :

Bulk

Shell Size, Connector Layout :

1 DE E

Body Material :

Metal

Series :

SUBCON

Housing Material :

Metal

Number of Contacts :

9

Wire/Cable Diameter :

-8.4 mm

Voltage - Rated DC :

60V

Current Rating :

1A

Width :

58.2mm

Mounting Type :

Free Hanging (In-Line)

Flange Feature :

Cable Side, Male Jackscrew (4-40)

Termination :

Terminal Block

Number of Rows :

2

Depth :

17mm

Voltage - Rated AC :

60V

Current Rating (Amps) :

1A

Gender :

Male
