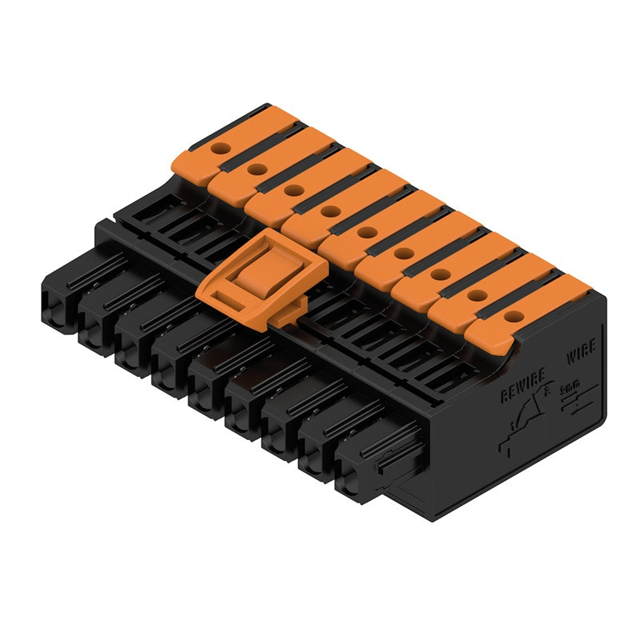

2741740000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Tradename :

Omnimate

Voltage Rating :

300 V, 400 V

Wire Size (AWG) :

20AWG to 14AWG

Gender :

FEMALE

Pitch :

5 mm

Rated Voltage :

400V

Connectable conductor cross section solid-core :

0.5 - 2.5

Height :

15.5 mm

Housing Material :

Polybutylene Terephthalate (PBT)

Inflammability class of insulation material according to with UL94 :

V0

Termination Style :

Through Hole

Number of Contacts :

9

RoHS :

Details

Flammability Rating :

UL 94 V-0

Degree of protection (IP), mounted :

IP20

Mounting Style :

PCB Mount

Material housing :

Plastic

Length :

40 mm

Current Rating :

+/- 14 A, +/- 26.8 A

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 4

Mounting Type :

PCB Mount

Series :

Omnimate 4.0 MPS

Mounting Angle :

Straight

Type of electric connection :

Spring clamp connection

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 2.5

Material contact :

Other copper alloys

Product :

Plugs

Contact Material :

COPPER ALLOY

Contact Plating :

Tin

Rated surge voltage :

4

Material of contact surface :

Tin

Connection Method :

PLUG

Color :

Black

Width :

12.3 mm

Number of Positions :

9 Position

Rated current In :

23.1

Rated Current :

26.8A

Number of Rows :

1
