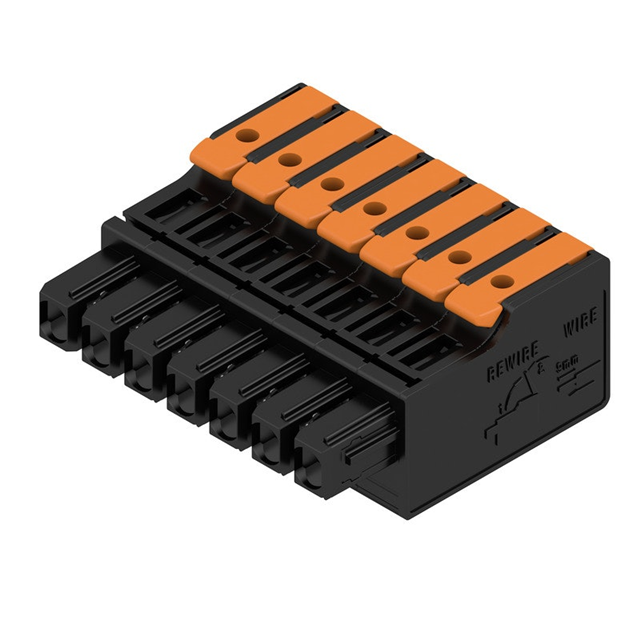

2741610000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Material contact :

Other copper alloys

Mounting Type :

PCB Mount

Connection Method :

PLUG

Wire Size (AWG) :

20AWG to 14AWG

Mounting Style :

PCB Mount

RoHS :

Details

Type of electric connection :

Spring clamp connection

Color :

Black

Width :

12.3 mm

Rated surge voltage :

4

Series :

Omnimate 4.0 MPS

Number of Contacts :

7

Inflammability class of insulation material according to with UL94 :

V0

Degree of protection (IP), mounted :

IP20

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 2.5

Contact Plating :

Tin

Material of contact surface :

Tin

Tradename :

Omnimate

Number of Rows :

1

Pitch :

5 mm

Gender :

FEMALE

Housing Material :

Polybutylene Terephthalate (PBT)

Length :

30 mm

Height :

15.5 mm

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 4

Termination Style :

Through Hole

Product :

Plugs

Material housing :

Plastic

Current Rating :

+/- 14 A, +/- 26.8 A

Contact Material :

COPPER ALLOY

Flammability Rating :

UL 94 V-0

Rated current In :

23.1

Connectable conductor cross section solid-core :

0.5 - 2.5

Number of Positions :

7 Position

Voltage Rating :

300 V, 400 V

Mounting Angle :

Straight

Rated Current :

26.8A

Rated Voltage :

400V
