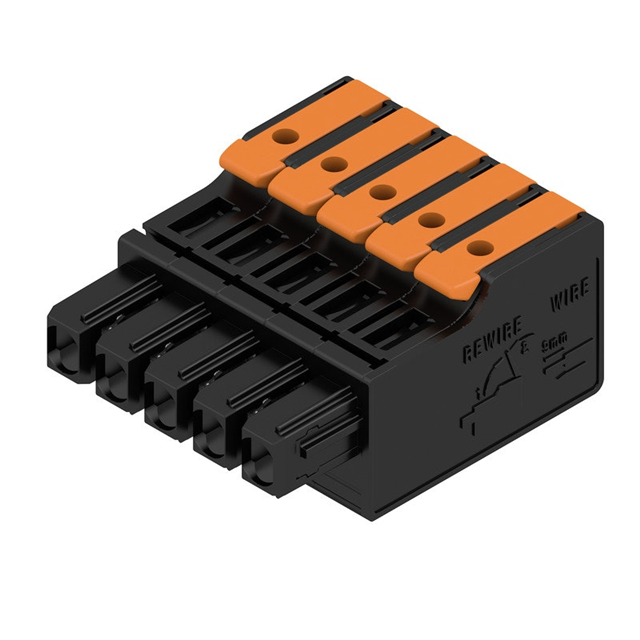

2741590000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Tradename :

Omnimate

Series :

Omnimate 4.0 MPS

Material of contact surface :

Tin

Rated Current :

26.8A

Product :

Plugs

Flammability Rating :

UL 94 V-0

Voltage Rating :

300 V, 400 V

Termination Style :

Through Hole

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 4

RoHS :

Details

Housing Material :

Polybutylene Terephthalate (PBT)

Material housing :

Plastic

Type of electric connection :

Spring clamp connection

Rated current In :

23.1

Connection Method :

PLUG

Degree of protection (IP), mounted :

IP20

Wire Size (AWG) :

20AWG to 14AWG

Height :

15.5 mm

Width :

12.3 mm

Number of Rows :

1

Material contact :

Other copper alloys

Color :

Black

Number of Contacts :

5

Mounting Style :

PCB Mount

Mounting Type :

PCB Mount

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 2.5

Gender :

FEMALE

Contact Plating :

Tin

Rated Voltage :

400V

Current Rating :

+/- 14 A, +/- 26.8 A

Pitch :

5 mm

Length :

20 mm

Inflammability class of insulation material according to with UL94 :

V0

Rated surge voltage :

4

Contact Material :

COPPER ALLOY

Mounting Angle :

Straight

Connectable conductor cross section solid-core :

0.5 - 2.5

Number of Positions :

5 Position
