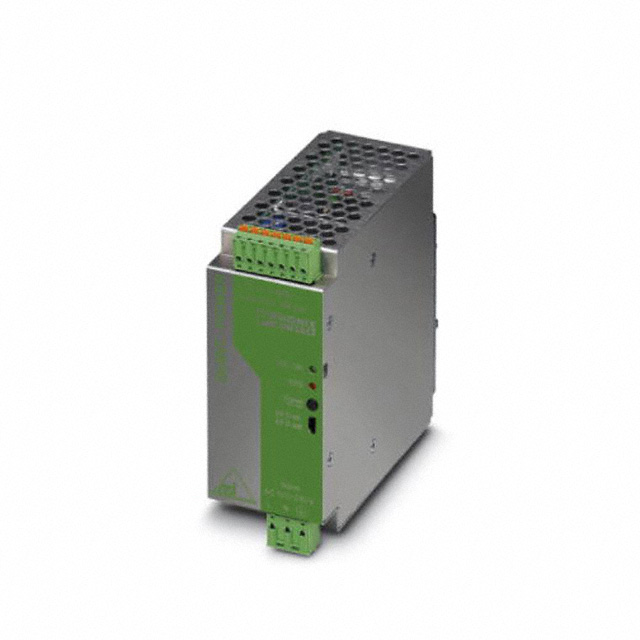

2736686

Manufacturer :

Phoenix Contact

Product Category :

Mount :

DIN Rail

Max Output Voltage :

30.1V

Max Output Current :

2.4A

RoHS Status :

RoHS Compliant

Min Output Voltage :

30.1V

Max Operating Temperature :

70°C

Width :

55mm

Factory Lead Time :

4 Weeks

Length :

125mm

Power (Watts) :

72W

Current - Output 1 :

2.4A

Type :

Enclosed

Max Power Dissipation :

72W

Min Input Voltage :

100V

Voltage - Isolation :

4kV

Series :

Quint

Applications :

ITE (Commercial)

Voltage - Input :

85V~264VAC

Package / Case :

100

Operating Temperature :

-25°C~70°C With Derating

Output Voltage :

30.1V

Weight :

1.290017kg

Output Current :

3A

Published :

2004

Max Input Voltage :

240V

Ratings :

IP20

Minimum Load Required :

No

Size / Dimension :

4.92Lx2.17W x 5.71 H 125.0mmx55.0mmx145.0mm

Min Operating Temperature :

-25°C

Number of Outputs :

1

Approval Agency :

CB, cULus, cURus

Feature :

Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input

Voltage - Output 1 :

30.1V

Depth :

145mm

Height :

145mm

Current - Output (Max) :

2.4A

Efficiency :

86%

Moisture Sensitivity Level (MSL) :

Not Applicable

Mounting Type :

DIN Rail
