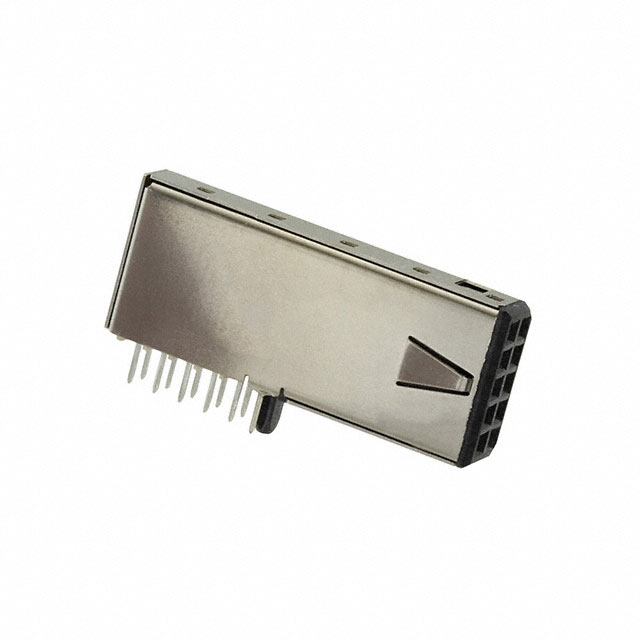

27211218010

Manufacturer :

HARTING

Product Category :

Headers, Receptacles, Female Sockets

JESD-609 Code :

e4

Gender :

Receptacle

Pitch - Mating :

0.079 2.00mm

Body Breadth :

0.453 inch

Operating Temperature :

-55°C~125°C

Insulation Height :

0.453 11.50mm

Mating Contact Pitch :

0.079 inch

Orientation :

RIGHT ANGLE

Polarization Key :

POLARIZED HOUSING

Mixed Contacts :

No

Factory Lead Time :

7 Weeks

Body Depth :

1.116 inch

Style :

Board to Cable/Wire

UL Flammability Code :

94V-0

Number of Positions Loaded :

All

Reliability :

COMMERCIAL

Current Rating :

1.5A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number Of PCB Rows :

5

Mount :

Through Hole

Length - Termination :

0.114 inch

Contact Finish - Mating :

Gold

Contact Length - Post :

0.114 2.90mm

Contact Shape :

Square

Insulation Material :

Plastic

Pbfree Code :

yes

Number of Rows :

2

IEC Conformance :

yes

Packaging :

Bulk

Option :

GENERAL PURPOSE

RoHS Status :

ROHS3 Compliant

Connector Type :

Socket

MIL Conformance :

No

Fastening Type :

Push-Pull

Feature :

Board Guide, Shielding Pins

Number of Positions :

10

Row Spacing - Mating :

0.079 (2.00mm)

Number of Conductors :

ONE

Material Flammability Rating :

UL94 V-0

Mounting Type :

Through Hole, Right Angle

Termination :

Solder

Filter Feature :

No

REACH SVHC :

No SVHC

Series :

Har-link®

Contact Material :

COPPER ALLOY

PCB Contact Pattern :

RECTANGULAR

DIN Conformance :

No

Contact Type :

Female Socket

Insulation Color :

Black
