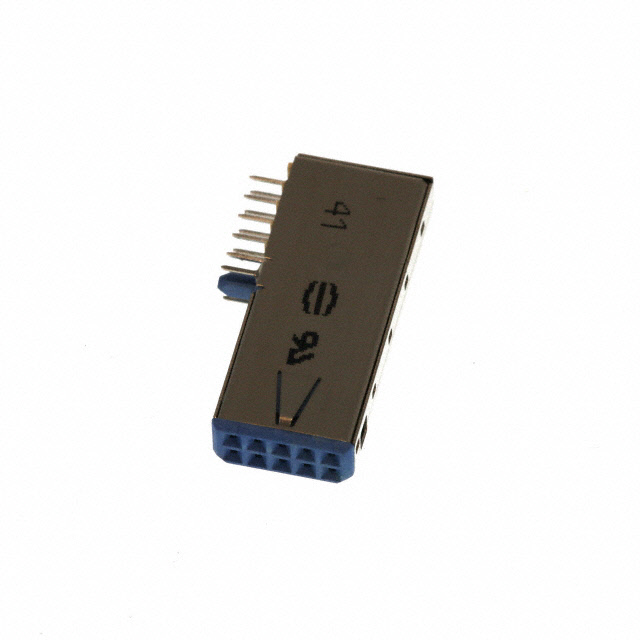

27211218006

Manufacturer :

HARTING

Product Category :

Headers, Receptacles, Female Sockets

Packaging :

Bulk

Contact Material :

COPPER ALLOY

Contact Shape :

Square

Mount :

Through Hole

Orientation :

RIGHT ANGLE

Insulation Color :

Blue

Filter Feature :

No

Contact Finish - Mating :

Gold

Material Flammability Rating :

UL94 V-0

Pbfree Code :

yes

Row Spacing - Mating :

0.079 (2.00mm)

Number Of PCB Rows :

5

JESD-609 Code :

e4

UL Flammability Code :

94V-0

Number of Positions :

10

Mating Contact Pitch :

0.079 inch

Insulation Material :

Plastic

Reliability :

COMMERCIAL

Termination :

Solder

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Free :

Lead Free

Insulation Height :

0.453 11.50mm

Pitch - Mating :

0.079 2.00mm

Number of Rows :

2

Connector Type :

Socket

Mounting Type :

Through Hole, Right Angle

Length - Termination :

0.114 inch

Contact Length - Post :

0.114 2.90mm

MIL Conformance :

No

Series :

Har-link®

Polarization Key :

POLARIZED HOUSING

Body Depth :

1.116 inch

Number of Positions Loaded :

All

IEC Conformance :

yes

Operating Temperature :

-55°C~125°C

Number of Columns :

5

Fastening Type :

Push-Pull

DIN Conformance :

No

Gender :

Receptacle

Style :

Board to Cable/Wire

ECCN Code :

EAR99

Current Rating :

1.5A

Mixed Contacts :

No

PCB Contact Pattern :

RECTANGULAR

Option :

GENERAL PURPOSE

RoHS Status :

ROHS3 Compliant

Feature :

Board Guide, Shielding Pins

REACH SVHC :

No SVHC

Contact Type :

Female Socket

Number of Conductors :

ONE
