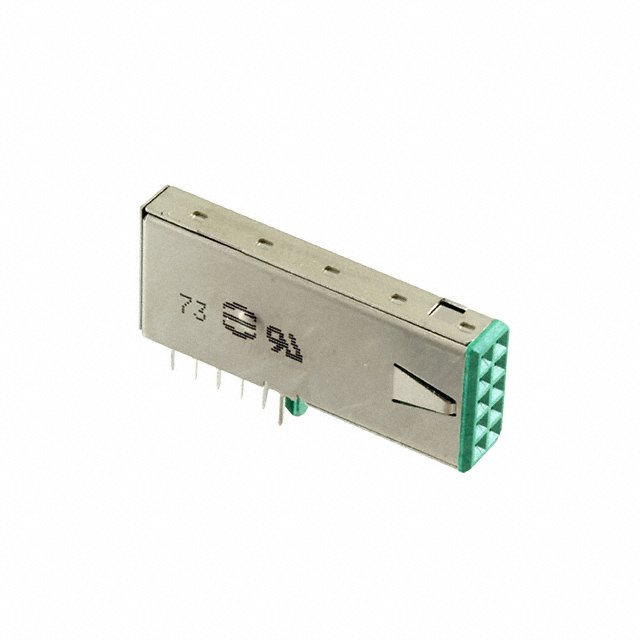

27211218005

Manufacturer :

HARTING

Product Category :

Headers, Receptacles, Female Sockets

Number of Positions :

10

Polarization Key :

POLARIZED HOUSING

Pitch - Mating :

0.079 2.00mm

Current Rating :

1.5A

Contact Finish - Mating :

Gold

Number of Rows :

2

IEC Conformance :

yes

Option :

GENERAL PURPOSE

Material Flammability Rating :

UL94 V-0

Insulation Color :

Green

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

Contact Shape :

Square

ECCN Code :

EAR99

Filter Feature :

No

MIL Conformance :

No

Depth :

28.35mm

Number of Ports :

1

Mounting Type :

Through Hole, Right Angle

Insulation Material :

Plastic

JESD-609 Code :

e4

Reliability :

COMMERCIAL

Series :

Har-link®

Max Current Rating :

1.5A

Connector Type :

Socket

Style :

Board to Cable/Wire

PCB Contact Pattern :

RECTANGULAR

Insulation Height :

0.453 11.50mm

Housing Material :

Polyester

Mount :

Through Hole

Contact Length - Post :

0.114 2.90mm

Operating Temperature :

-55°C~125°C

Packaging :

Bulk

Orientation :

RIGHT ANGLE

HTS Code :

8536.69.40.40

Number of Positions Loaded :

All

Number Of PCB Rows :

5

Mixed Contacts :

No

Length :

5.2mm

Contact Material :

COPPER ALLOY

UL Flammability Code :

94V-0

Termination :

Solder

Contact Type :

Female Socket

RoHS Status :

ROHS3 Compliant

Feature :

Board Guide, Shielding Pins

Number of Conductors :

ONE

Body Breadth :

0.453 inch

Mating Contact Pitch :

0.079 inch

Fastening Type :

Push-Pull

DIN Conformance :

No

Row Spacing - Mating :

0.079 (2.00mm)
